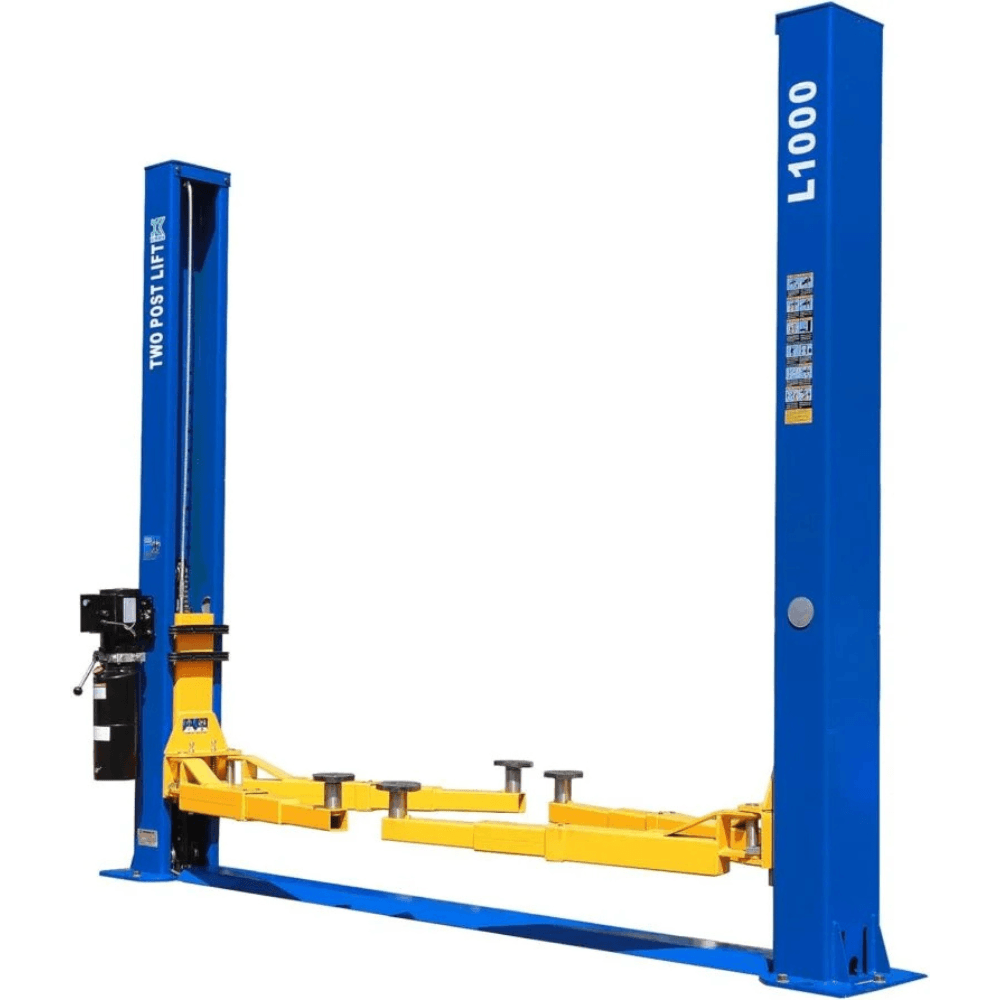

XKUSA L1000 2 Post Car Lift 3.42m x 2.8m
The XKUSA L1000 is a heavy-duty two-post car lift engineered for automotive repair shops, service centers, and serious DIY mechanics. With a 4535.9 kg lifting capacity, it effortlessly accommodates a versatile range of passenger cars, light trucks, and SUVs.
Constructed from durable heavy-duty steel, this open-top lift features double-point safety lock releases, automatic arm restraints, and a smooth hydraulic lifting system to deliver dependable performance and complete undercarriage access.
Key Features
| Brand | XKUSA |
| Model | L1000 |
| Product Type | Two-Post Car Lift |
| Lifting Capacity | 4535.9 kg |
| Overall Width | 3.42 m |
| Overall Height | 2.8 m |
| Drive-Thru Width Clearance | 253 cm |
| Maximum Lift Height | 200.3 cm |
| Minimum Pad Height | 9.8 cm |

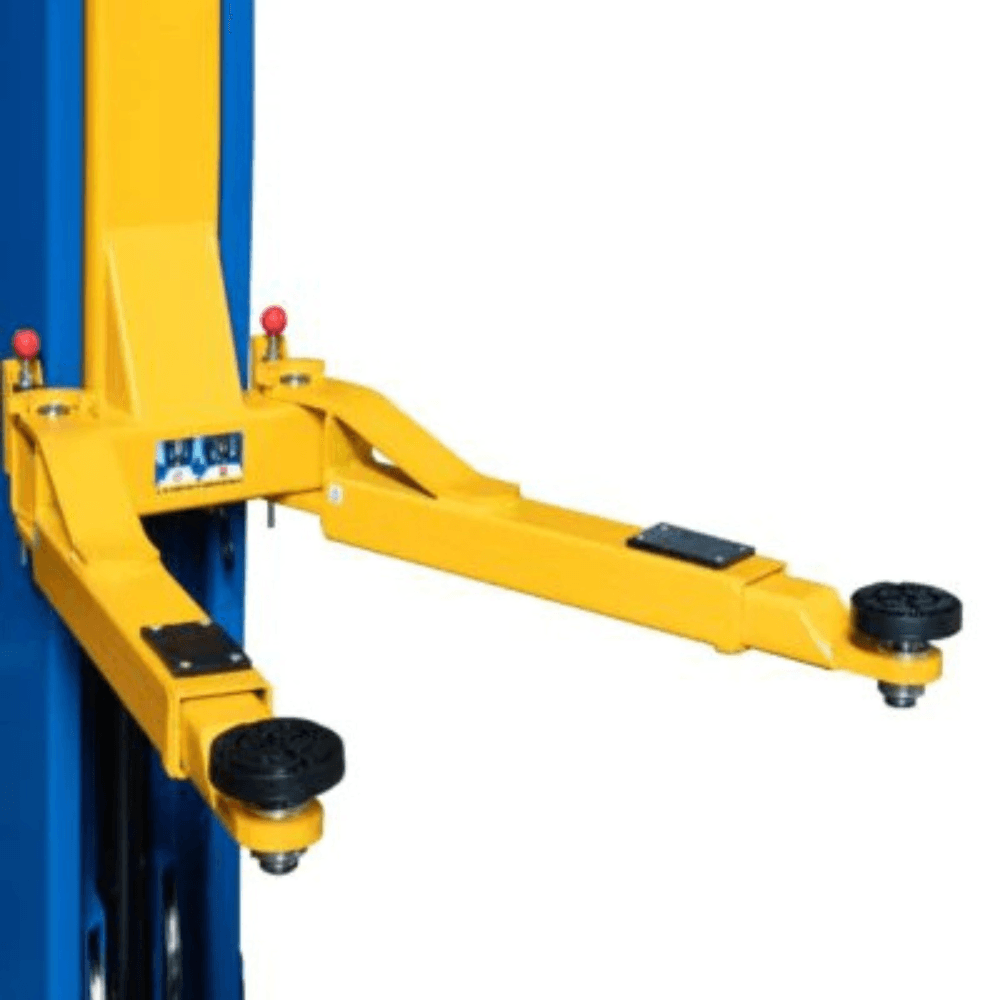

| Front Arm Reach | 78 cm to 121.9 cm |
| Rear Arm Reach | 78 cm to 121.9 cm |
| Column Width | 27 cm |
| Base Width | 48 cm |
| Column Steel Thickness | 4.8 mm |
| Carriage Steel Thickness | 6 mm |
| Arm Steel Thickness | 6 mm |
| Time to Full Rise | 20-60 sec |
| Shipping Weight | 612.3 kg |
| Voltage Requirement | 220V or 110V |
| Material | Heavy-Duty Steel |
Highlights
- 10,000 lb. Lifting Capacity – Suitable for cars, trucks, and SUVs.
- Two-Post Open-Top Design – Provides full access to the undercarriage for maintenance and repairs.
- Hydraulic Lifting System – Ensures smooth and controlled lifting.

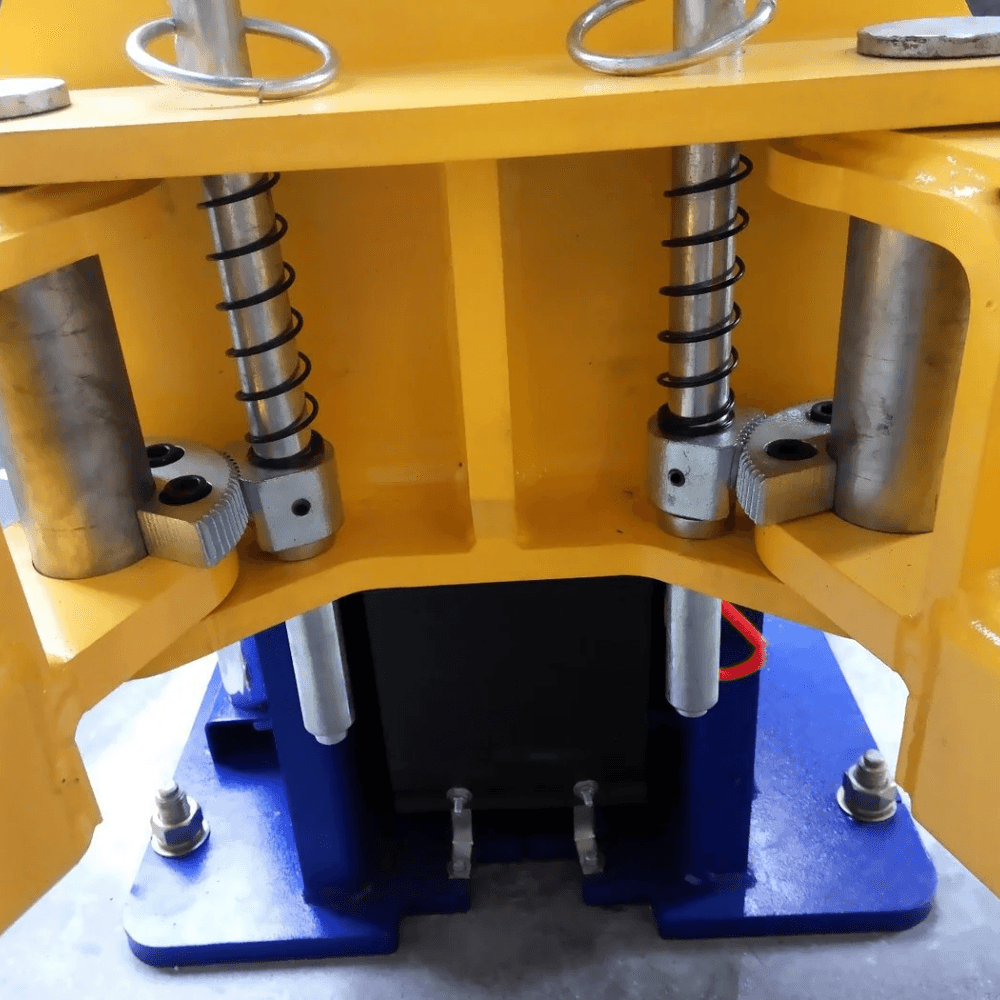

- Double-Point Safety Lock Release – Enhances stability and security during operation.

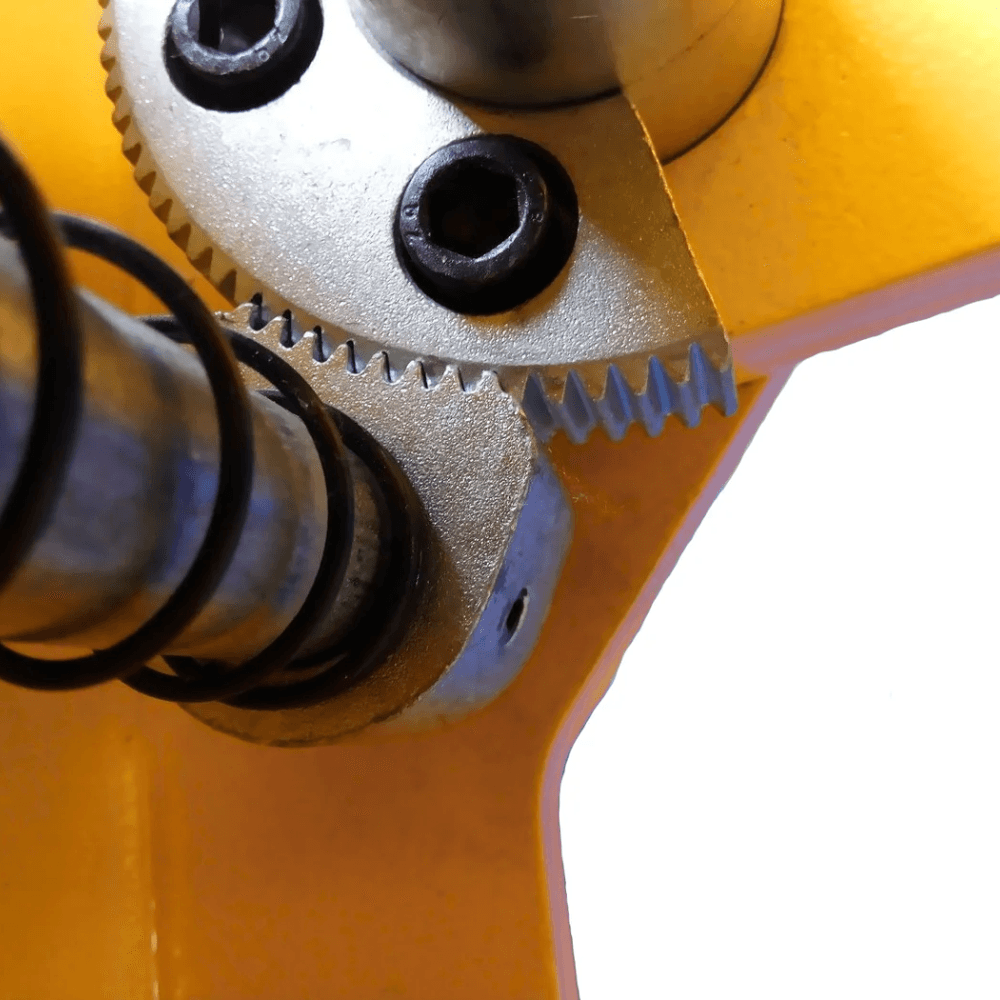

- Automatic Arm Lock Restraints – Keeps lift arms securely positioned.
- Relief Valve Built Into Power Pump – Prevents overloading for increased safety.
- Door Guard Protection Rubber – Protects vehicle doors from scratches and dents.
- Heavy-Duty Steel Construction – 5/16″ diameter cable and 4.56″ pulley reduce stress on synchronization and extend cable life. Stiffened 5/8″ thick base plate adds stability.
- Ultra High Molecular Self-Lubricating Nylon Slider – Ensures smooth movement of the carriage.
- Anchor Bolts & Mounting Hardware Included – For secure installation.
- Easy Control System – Lifting operation via “UP” button. Manual lowering via lever control.
- Truck Adapter Set Included – Expands vehicle compatibility.
Compatibility
Suitable for passenger cars, SUVs, and light-duty trucks weighing up to 4535.9 kg with designated frame or pinch weld lifting points.
How to use
Position the vehicle between the columns and adjust the front and rear swing arms to align with the manufacturer-recommended lifting points. Press the UP button to raise the vehicle via the hydraulic pump, ensuring the safety locks engage. To lower, release the safety locks and use the manual lever control.
What's included
- XKUSA L1000 Two-Post Car Lift assembly
- Truck adapter set
- Anchor bolts and mounting hardware
- Hydraulic power unit
- Door guard protection rubber pads
