BendPak XPR-10AS-LP Two Post Lift 4536kg
The BendPak XPR-10AS-LP is a high-performance asymmetric two-post lift engineered for professional automotive shops and performance garages. Equipped with Low-Pro™ arms, dual direct-drive hydraulic cylinders, and a heavy-duty 4536 kg capacity, it effortlessly accommodates low-profile sports cars, standard passenger vehicles, and light trucks.
Featuring 30-degree rotated columns and expandable width settings, this lift maximizes workspace ergonomics and drive-thru clearance. Advanced safety mechanisms including a padded overhead shutoff bar, single-point release, and automatic arm restraints ensure durable, secure, and efficient operation.
Key Features
| Brand | BendPak |
| Model | XPR-10AS-LP |
| Product Type | Two-Post Asymmetric Lift |
| Lifting Capacity | 4536 kg |
| Max Capacity (Front / Rear Axle) | 2268 kg |
| Height Overall | 368.3 cm |
| Width Overall (Narrow / Wide) | 348 cm / 368.3 cm |
| Width Outside Columns (Narrow / Wide) | 337.8 cm / 358.1 cm |
| Inside Columns (Narrow / Wide) | 264.2 cm / 284.5 cm |
| Overhead Shutoff Height | 358.1 cm |
| Front Arm Reach | 59.7 cm – 97.8 cm |
| Rear Arm Reach | 87.6 cm – 138.4 cm |
| Minimum Pad Height | 10.8 cm – 17.1 cm |
| Rise | 175.3 cm |
| Drive-Thru Clearance (Narrow / Wide) | 238.8 cm / 259.1 cm |
| Screw Pad Adjustment | 5.1 cm |
| Motor | 220V AC / 60 Hz / Single Phase |
| Time to Full Rise | 45 Seconds |
| Max Load Per Arm | 1134 kg |
Highlights
- 10,000 lb. Lifting Capacity – Handles cars, trucks, SUVs, and low-profile sports cars.

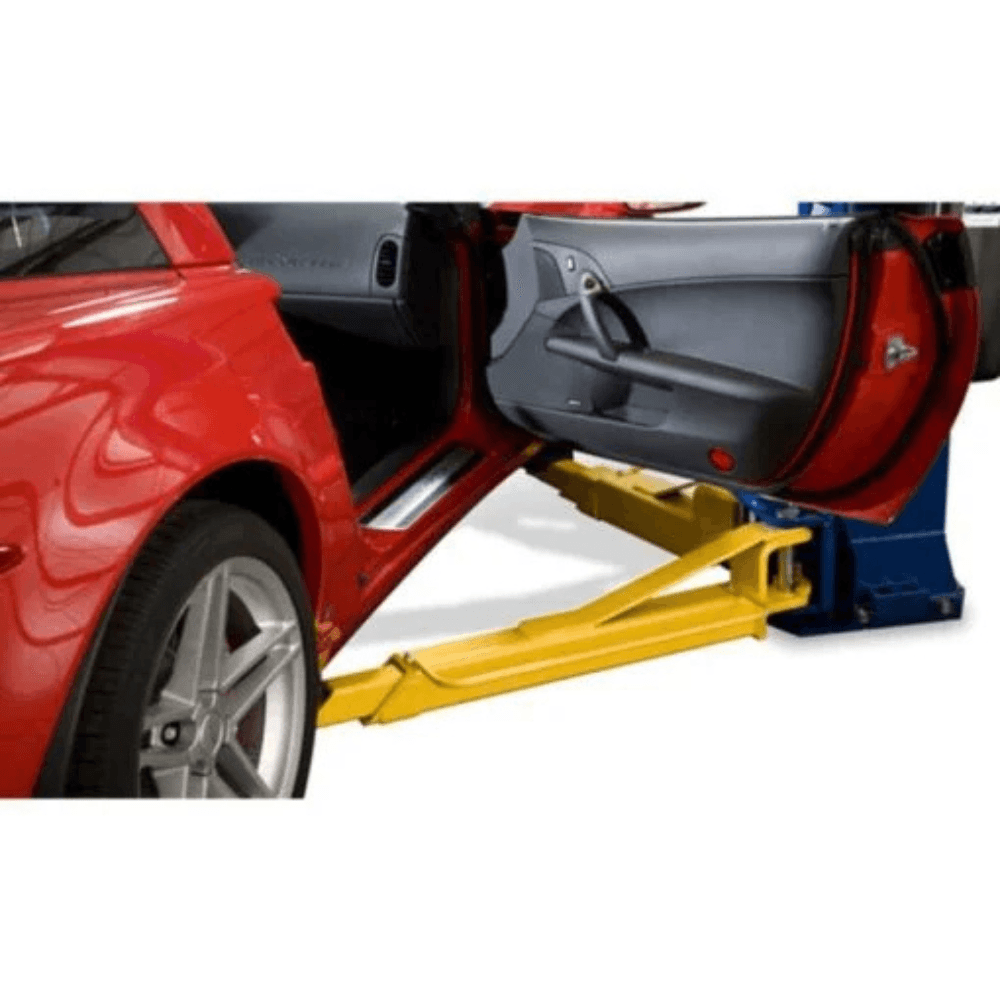

- Low-Pro™ Arms – Ideal for lowered vehicles with lift points at the chassis edge.
- Asymmetric Design – Allows easier vehicle entry/exit and better workspace ergonomics.
- Expandable Top Beam – Adjustable for narrow or wide drive-thru configurations.
- Double-Telescoping Screw Pads – Versatile and adaptable for various vehicles.
- Padded Overhead Safety Shutoff Bar – Prevents over-lifting and damage.
- Tru-Metric™ Arm Design – Flexible arm positioning for different vehicle sizes.
- 30° Rotated Single-Piece Columns – Improved lifting angles and column stability.
- Single-Point Safety Release – Simplifies locking/unlocking process.
- Dual Hydraulic Direct-Drive Cylinders – Smooth, powerful, and low-maintenance lifting.
- Oversized 53″ Tall Carriage – Increases lift durability and strength.
- Electric / Hydraulic Power System – Efficient, powerful, and easy to use.
- 17″ x 19″ A36 Steel Base Plates – Ensures maximum stability and safety.
- Dura-Glide™ UHMW Polyethylene Bearings – Self-lubricating for smooth operation.
- 1/2″ Aircraft-Quality Equalizer Cables – Long-lasting, reliable, and safe.
- Safety Locks Every 3″ – Multiple height settings ensure secure lifts.
- Automatic Arm Restraints – Keeps arms locked in position for added security.
- Versatile Drop-In Contact Pads & Stackable Adapters – Increases vehicle compatibility.

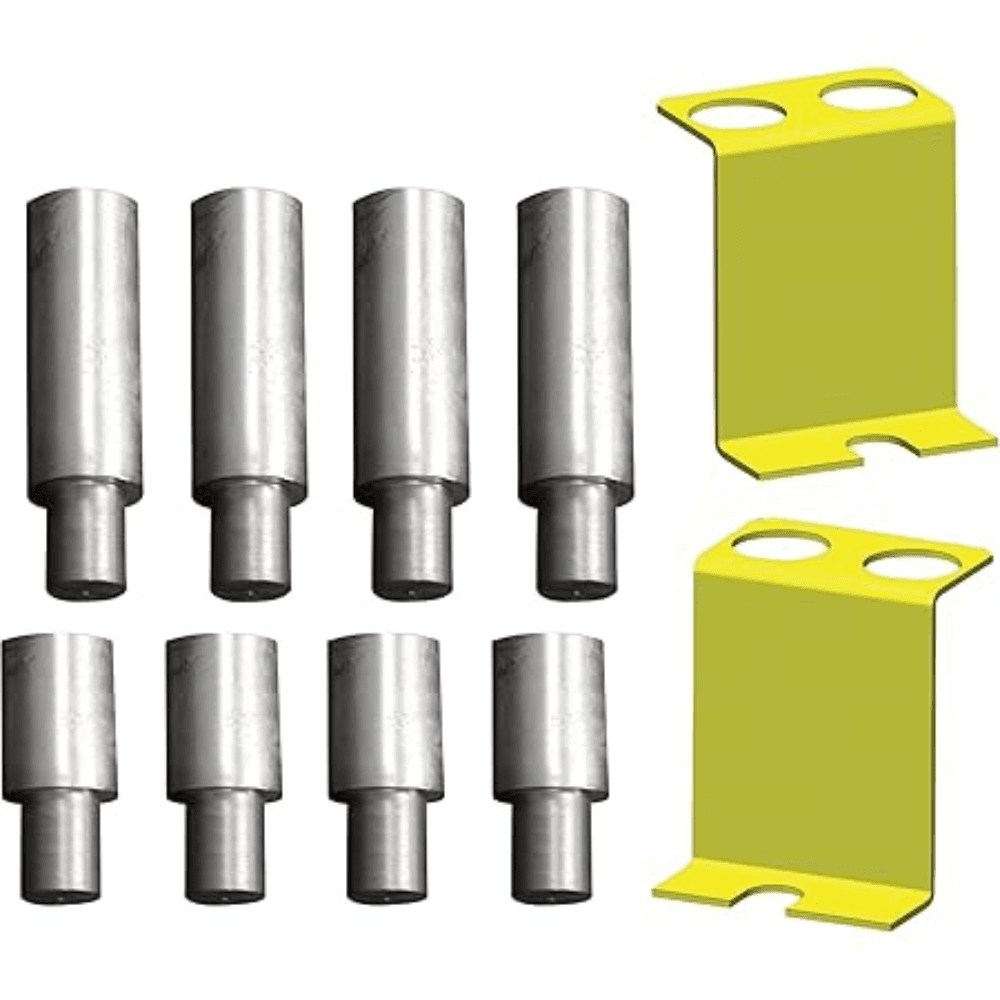

- 4-Piece 63mm Adapter Set Included – Expand lift range for various vehicles.
- Meets/Exceeds ANSI/ALI ALCTV-2011 Standards – Top-tier safety compliance.
Compatibility
Compatible with standard passenger cars, light-duty trucks, SUVs, and lowered sports cars requiring low-profile lift points.
What's included
- BendPak XPR-10AS-LP Two-Post Lift Assembly
- 4-Piece 63 mm Adapter Set
- Double-Telescoping Screw Pads
