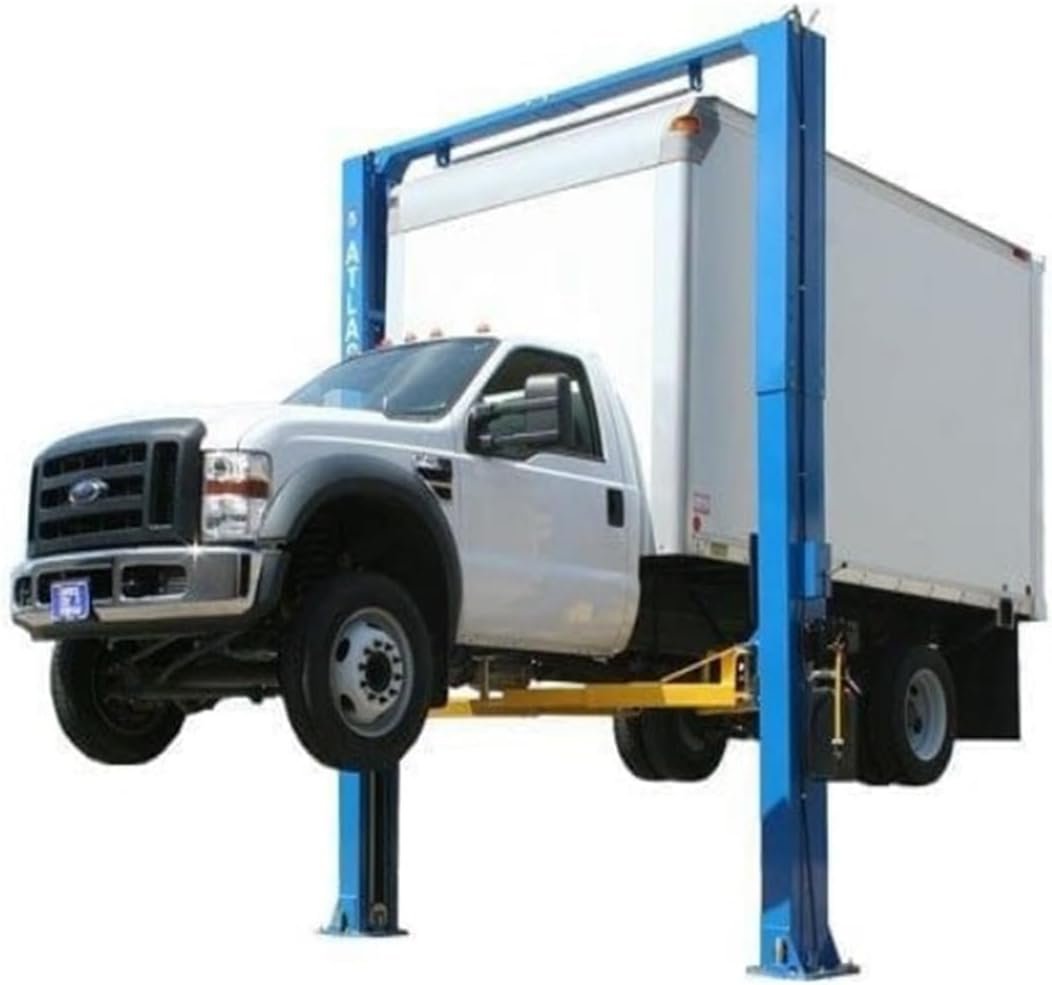

Atlas PV12PX Two Post Car Lift 979.8kg
The Atlas PV12PX is a commercial-grade overhead two-post lift engineered for heavy-duty vehicle service. Built with symmetrical columns and extended arms, it easily accommodates passenger cars, vans, and long-wheelbase trucks with optimal clearance and stability.
Equipped with direct-drive cylinders, automatic arm restraints, and a single-point lock release, this system ensures safe and efficient operation. A padded shut-off bar and protective door guards prevent vehicle damage during lifting.
Key Features
| Brand | Atlas |
| Model | PV12PX |
| Lift Capacity | 5443.1 kg |
| Shipping Weight | 979.8 kg |
| Overall Floor Width | 382.9 cm |
| Outside Column to Outside Column | 353.4 cm |
| Inside Column Width | 313.7 cm |
| Drive-Through Clearance | 278.1 cm |
| Maximum Lift Height (Without Adapters) | 183.5 cm |
| Maximum Lift Height (With Adapters) | 205.7 cm |
| Minimum Arm Height | 11.4 cm |

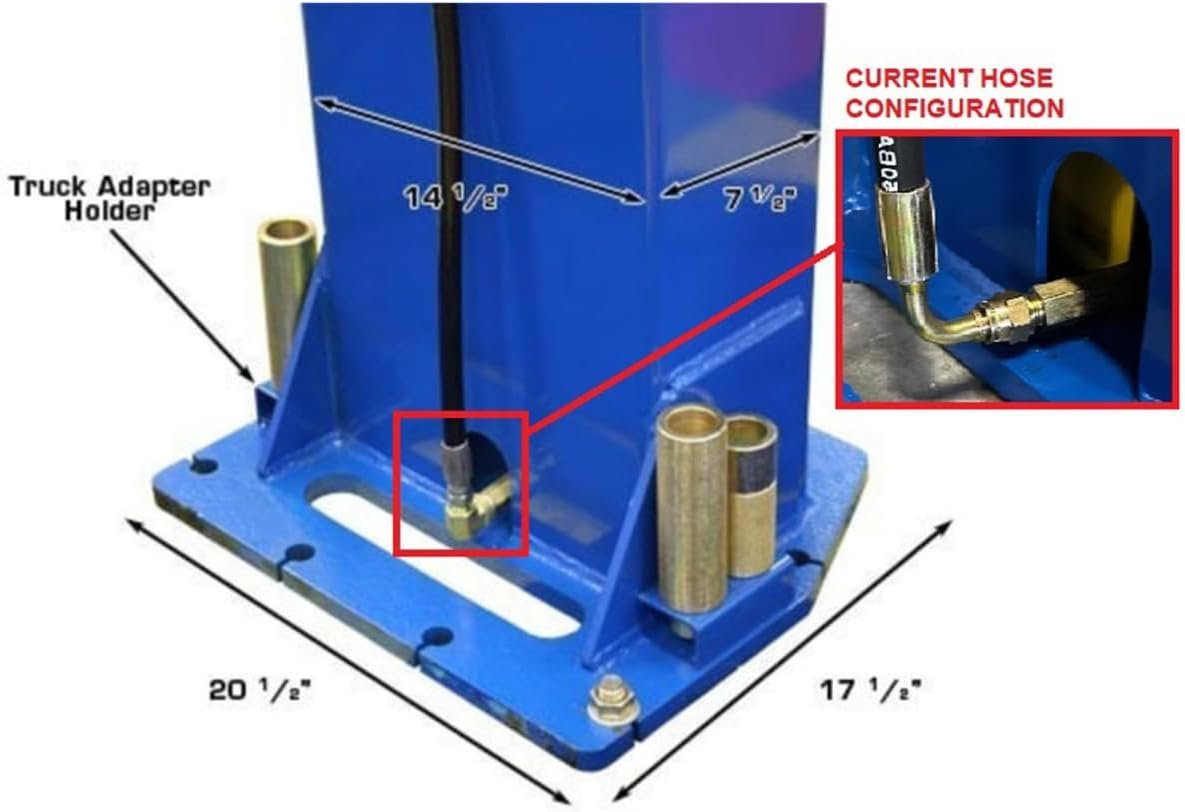

| Column Dimensions | 19.1 cm x 36.8 cm |
| Electrical Requirements | 220V Single Phase, 30A Breaker Recommended |
| Hydraulic Fluid Capacity | 11.4 - 18.9 L AW32/AW46 |
| Finish | Powder Coat |
Highlights
- 12,000 lb. capacity
- Extra Tall & Extra Wide
- Commercial Grade
- Adjustable height 150″ (12′ 6″) or 165″ (13′ 9″) or 177″ (14′ 9″)
- Special low height 150″ (12′ 6″) (Requires purchase of extra cables)

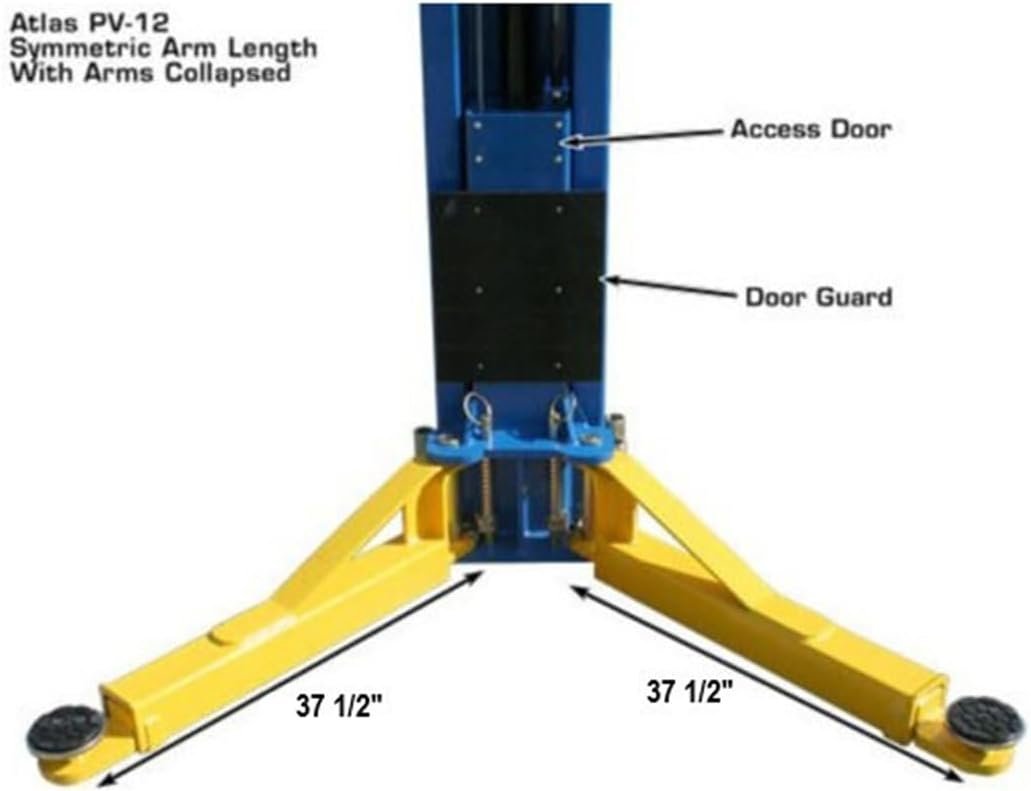

- Symmetric arms
- Automatic Arm Restraints
- Padded Shut-Off Bar
- Door Guards on Carriages

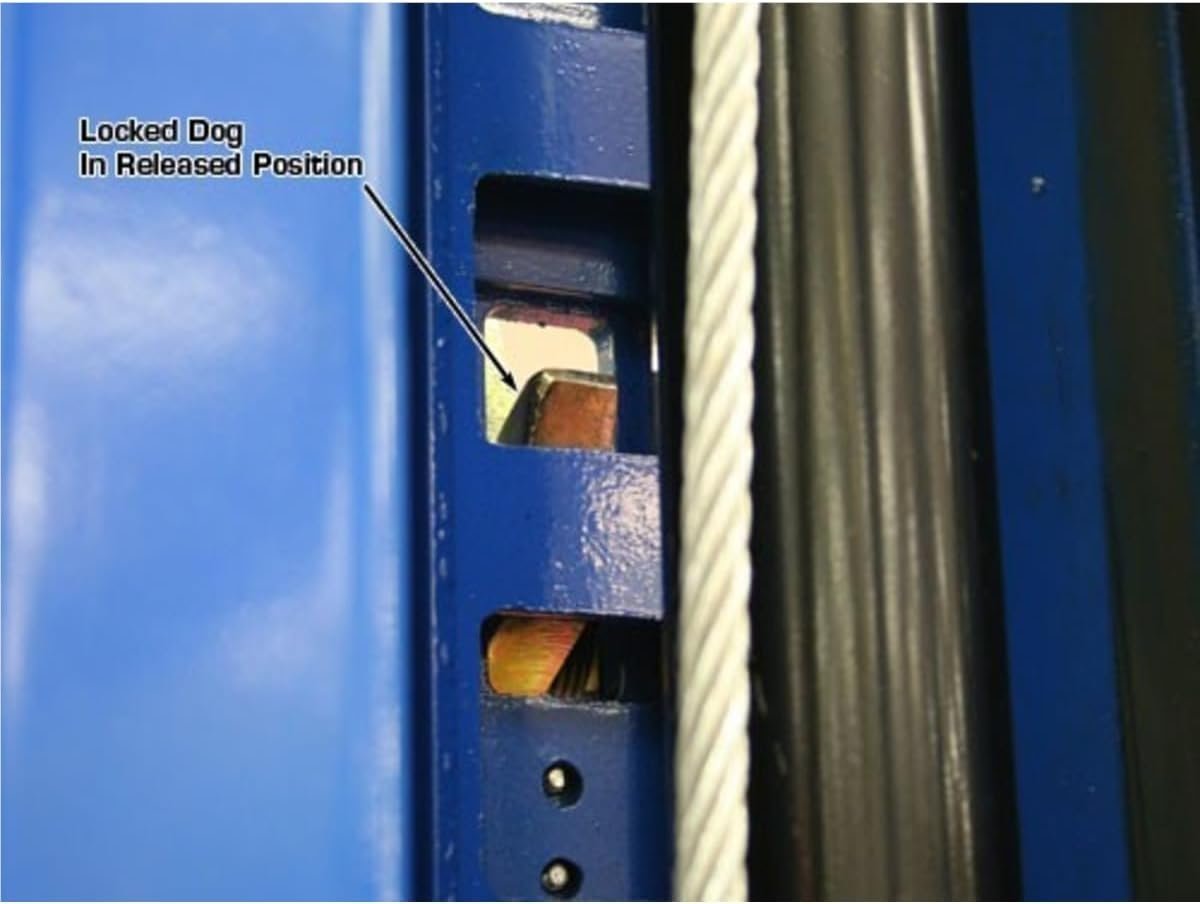

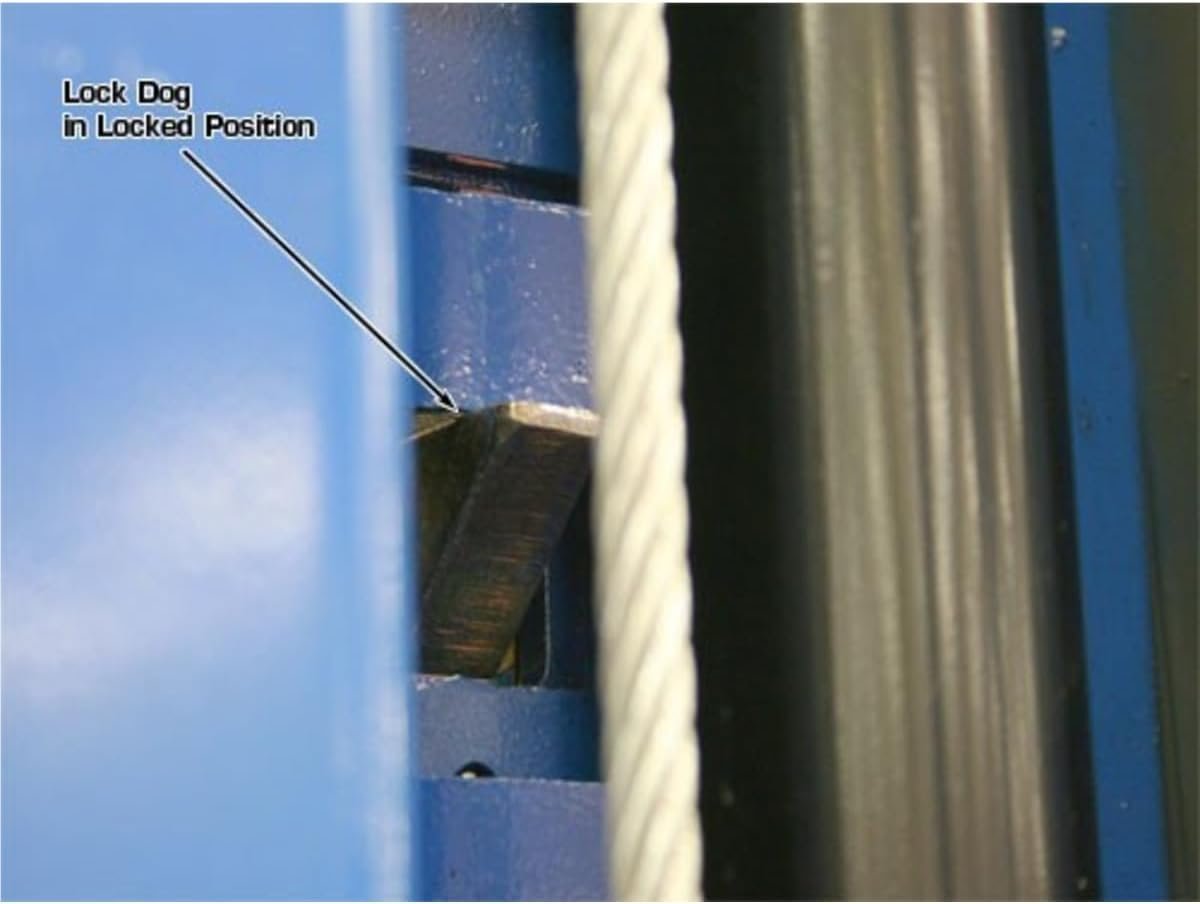

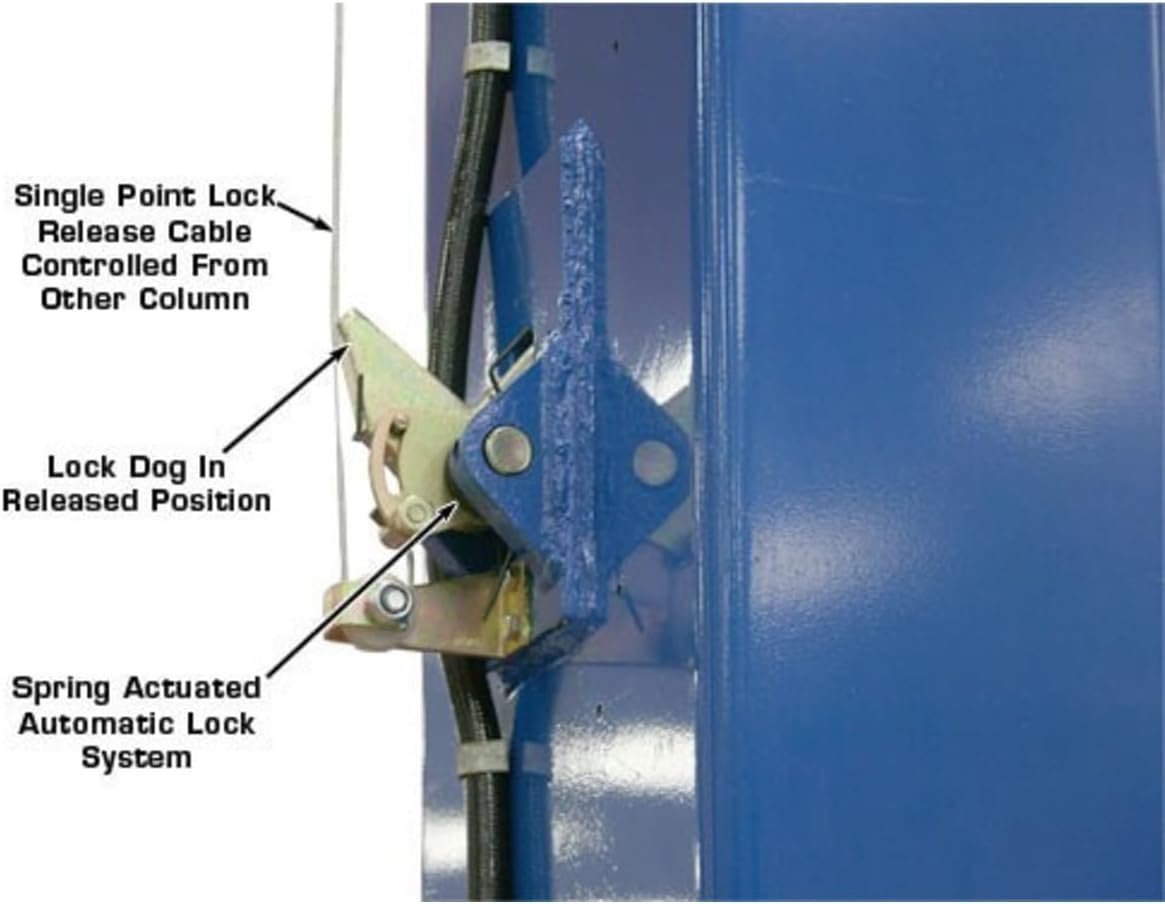

- Single Point Lock Release

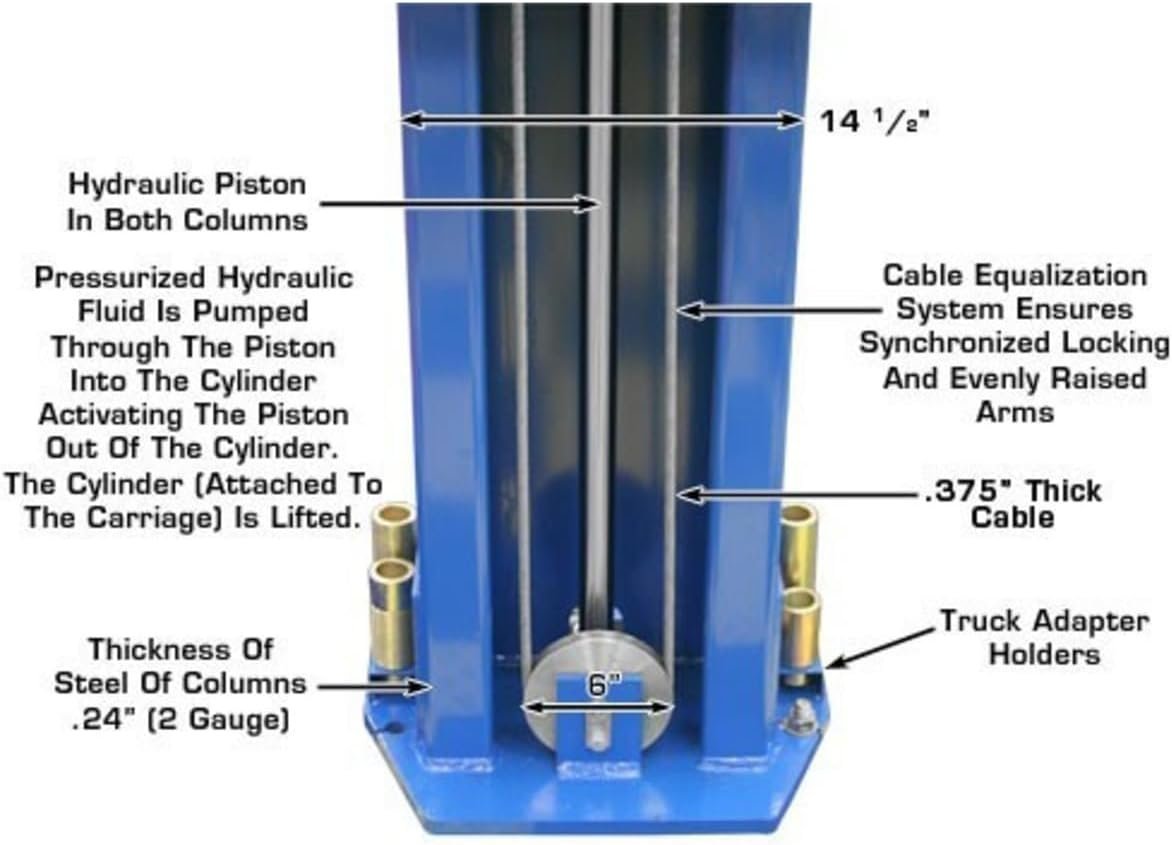

- Direct-Drive Cylinders
- Powder Coat Finish
- 12 Piece Truck Adapter Set included
- Mounting Hardware Included
- Shipping weight: 2,160 lbs.
- 5-year structural, 2-year hydraulic, 1-year power unit parts-only manufacturer's warranty
What's included
- Atlas PV12PX Two-Post Lift Assembly
- 12-Piece Truck Adapter Set (4x 3.2 cm, 4x 6.4 cm, 4x 12.7 cm)
- Mounting Hardware
