Atlas BP8000 3628.7kg Baseplate 2-Post Lift 2.74m
The Atlas BP8000 is a heavy-duty, baseplate two-post lift engineered specifically for low-ceiling workshops and residential garages. With a compact column height of 2.74 m, this open-top lift fits comfortably under ceilings as low as 2.82 m while delivering a robust 3,628.7 kg lifting capacity.
Featuring dual hydraulic chain-drive cylinders, Super-Symmetric arms with 2-stage fronts and 3-stage rears, and a convenient single-point safety lock release, it provides exceptional stability and versatility. The included 12-piece truck adapter set and automatic arm restraints ensure secure, reliable vehicle maintenance across cars, SUVs, and light trucks.
Key Features
| Brand | Atlas |
| Model | BP8000 |
| Product Type | Baseplate Two-Post Lift |
| Lifting Capacity | 3628.7 kg |
| Overall Height | 274.3 cm |
| Overall Floor Width | 335.3 cm |

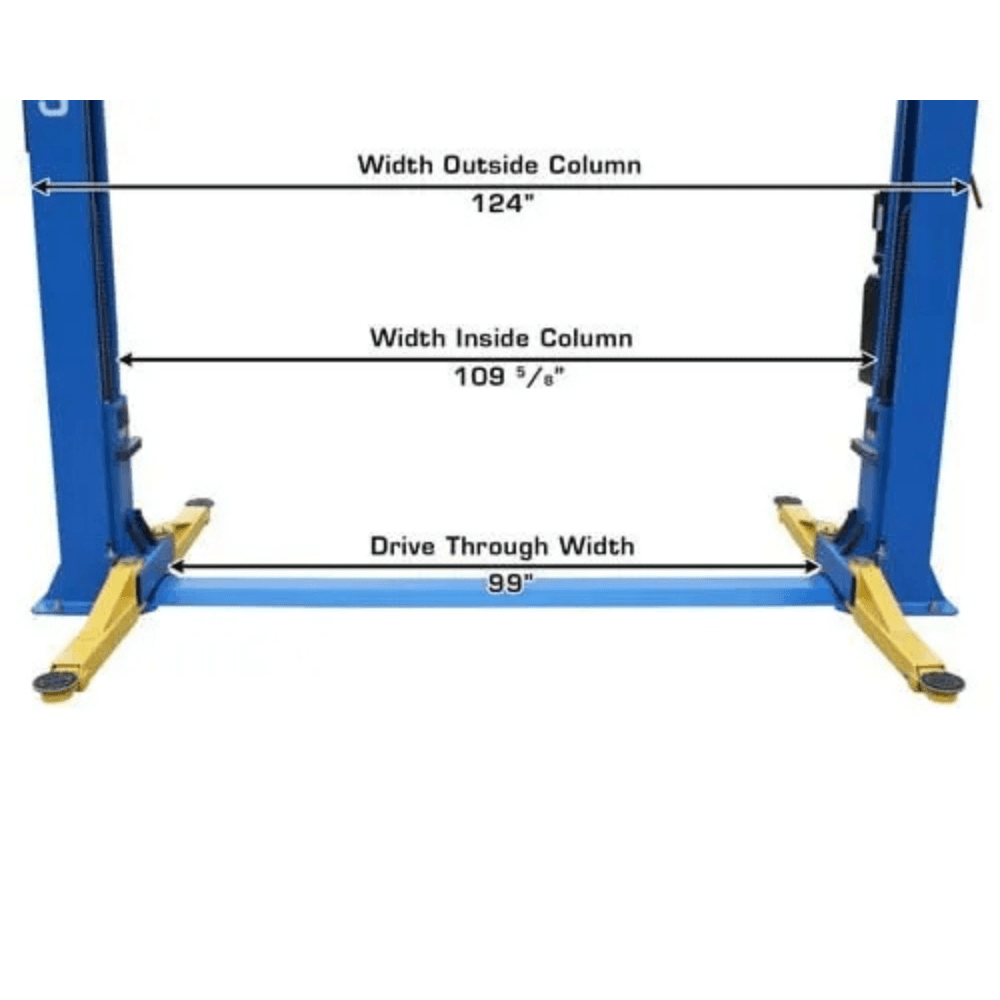

| Outside Column to Outside Column | 315 cm |
| Inside Column Width | 277.2 cm |
| Drive-Thru Clearance | 251.5 cm |

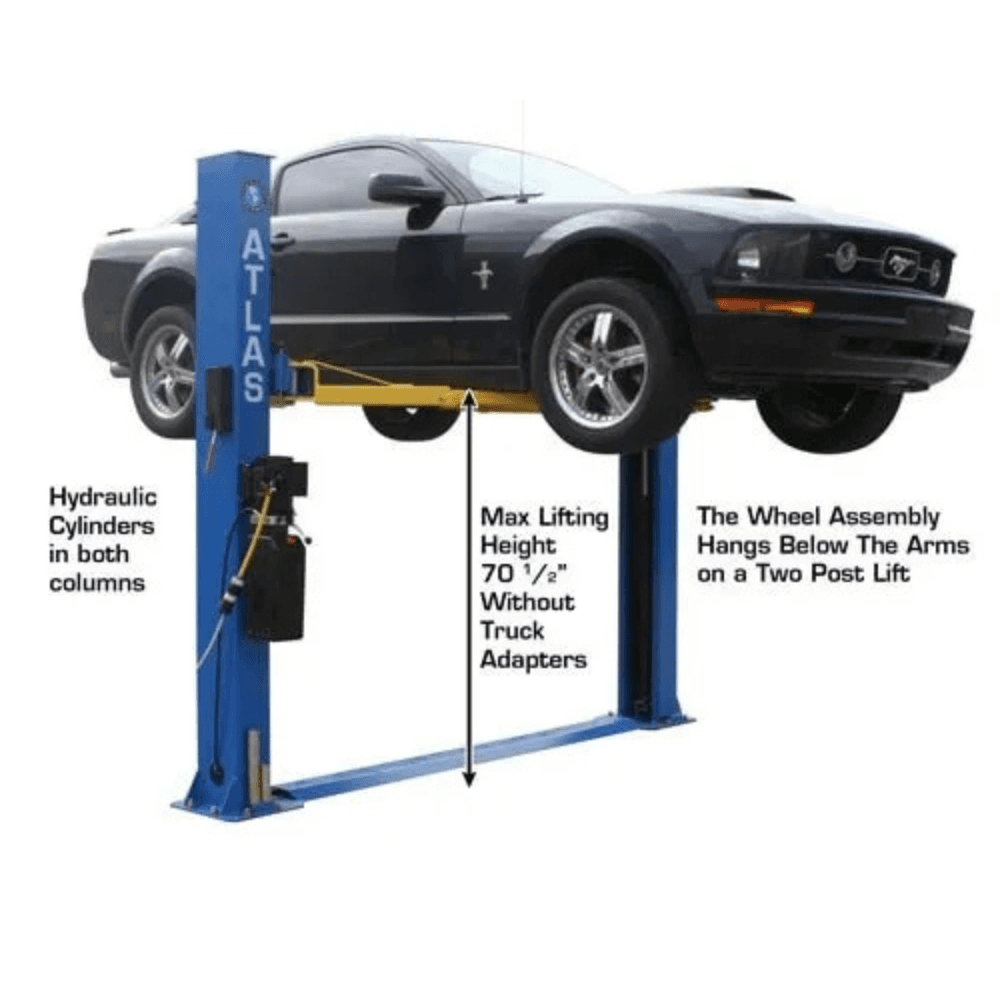

| Maximum Lift Height (Without Adapters) | 191.8 cm |

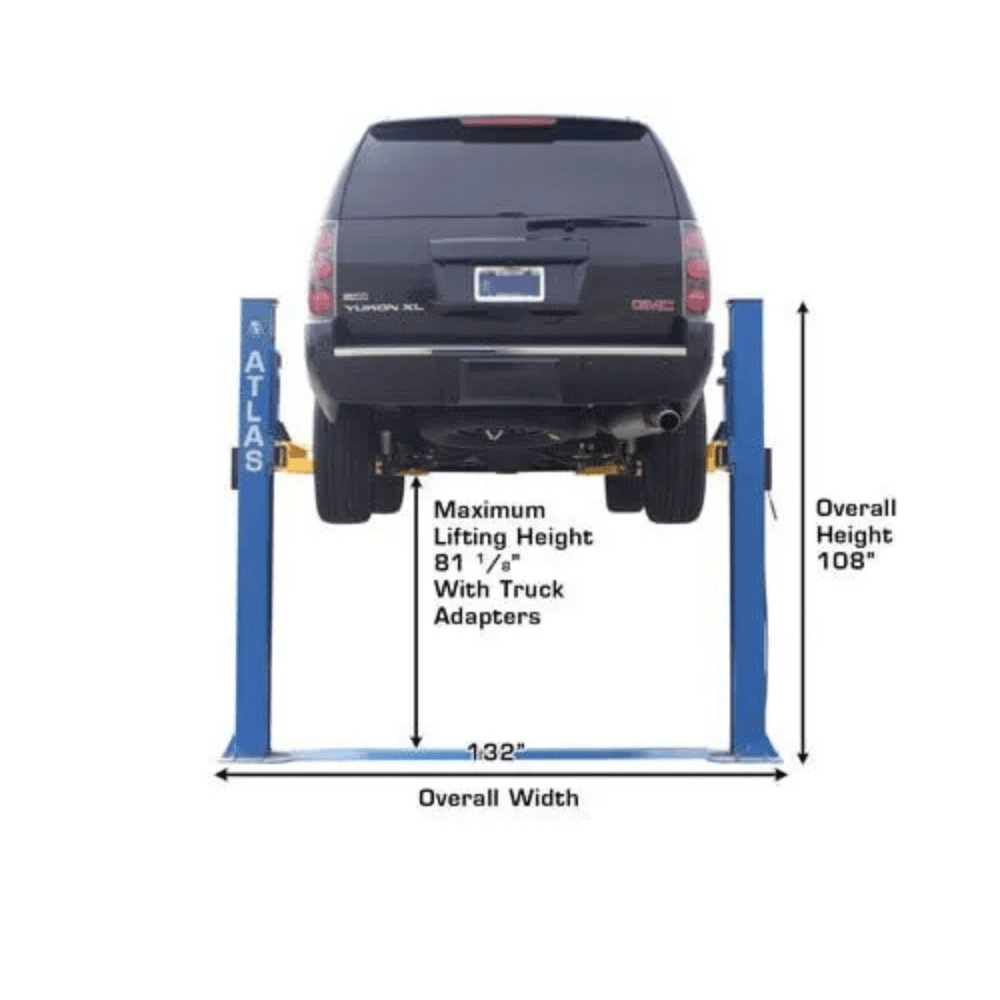

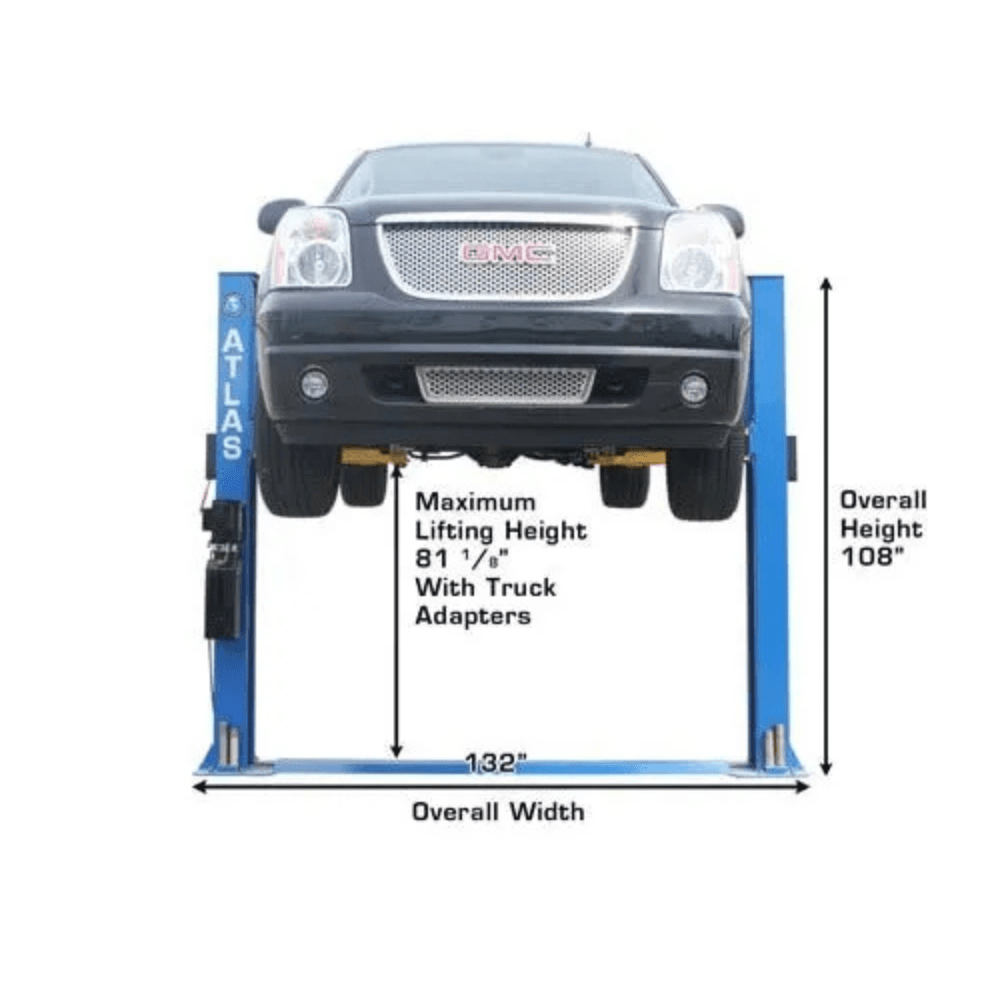

| Maximum Lift Height (With Adapters) | 219.7 cm |
| Minimum Arm Height | 10.2 cm |
| Column Dimensions | 18.4 cm x 27.9 cm |
| Column Steel Thickness | 6 mm |
| Base Dimensions | 44.5 cm x 45.1 cm |
| Motor / Electrical Requirement | 220V Single Phase (30 Amp Breaker Recommended) |
| Oil Requirement | 11.4 - 18.9 L AW32 or AW46 (Not Included) |
| Shipping Weight | 589.7 kg |
| Adapter Heights | 4 each: 5.1 cm, 7.6 cm, 15.2 cm |
| Arm Hole / Adapter Peg Size | 3.8 cm |
Highlights
- 8,000 lb. Lifting Capacity – Suitable for cars, SUVs, and light trucks.
- Designed for Low-Ceiling Garages – Total height of 108″ (9 feet) allows installation in spaces with ceilings as low as 9′ 3″.
- Baseplate, Open-Top Style Lift – Provides structural stability without an overhead beam.
- Super-Symmetric Arm Design – 2-Stage Front Arms & 3-Stage Rear Arms for enhanced flexibility. Allows vehicles to be lifted in both symmetric and asymmetric positions.
- Automatic Arm Restraints – Ensures secure positioning during lifting.

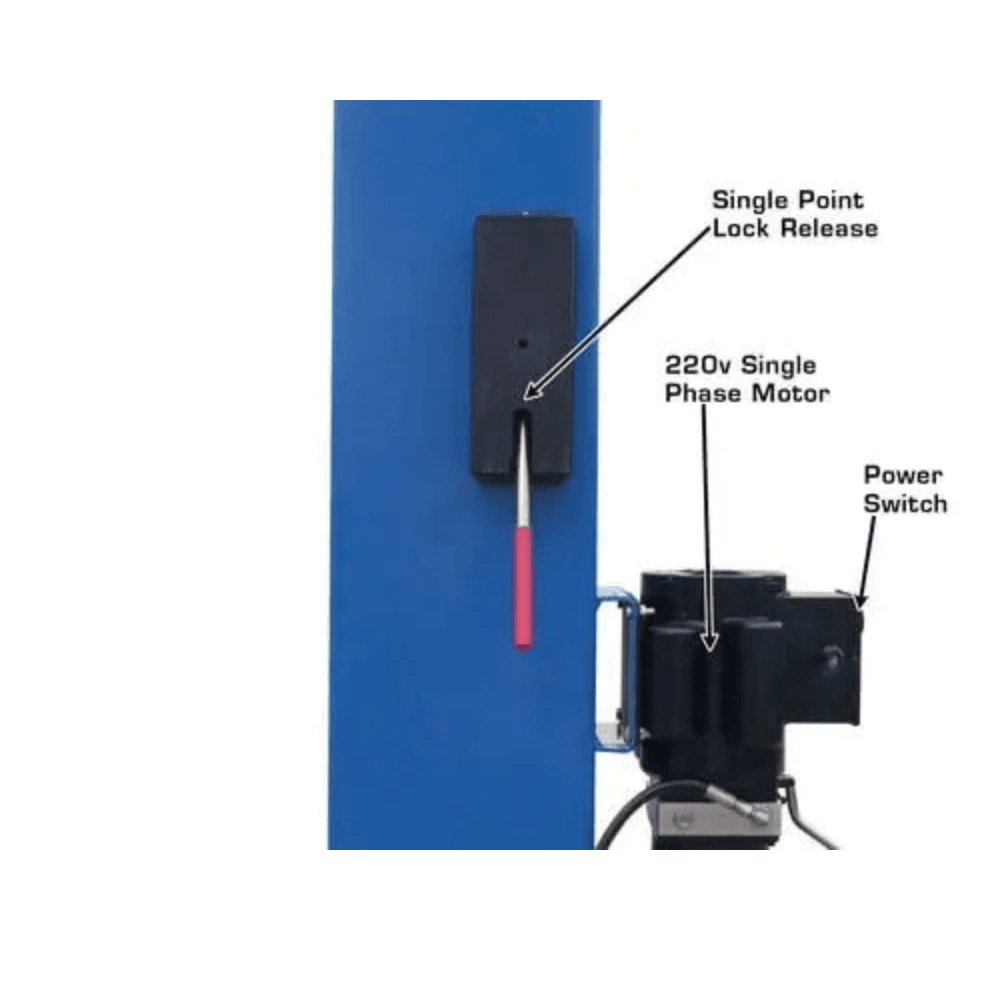

- Single-Point Lock Release – Allows simultaneous unlocking of both columns for added convenience. Enhances safety and ease of operation.
- Double Safety Lock System – Provides an extra layer of security.

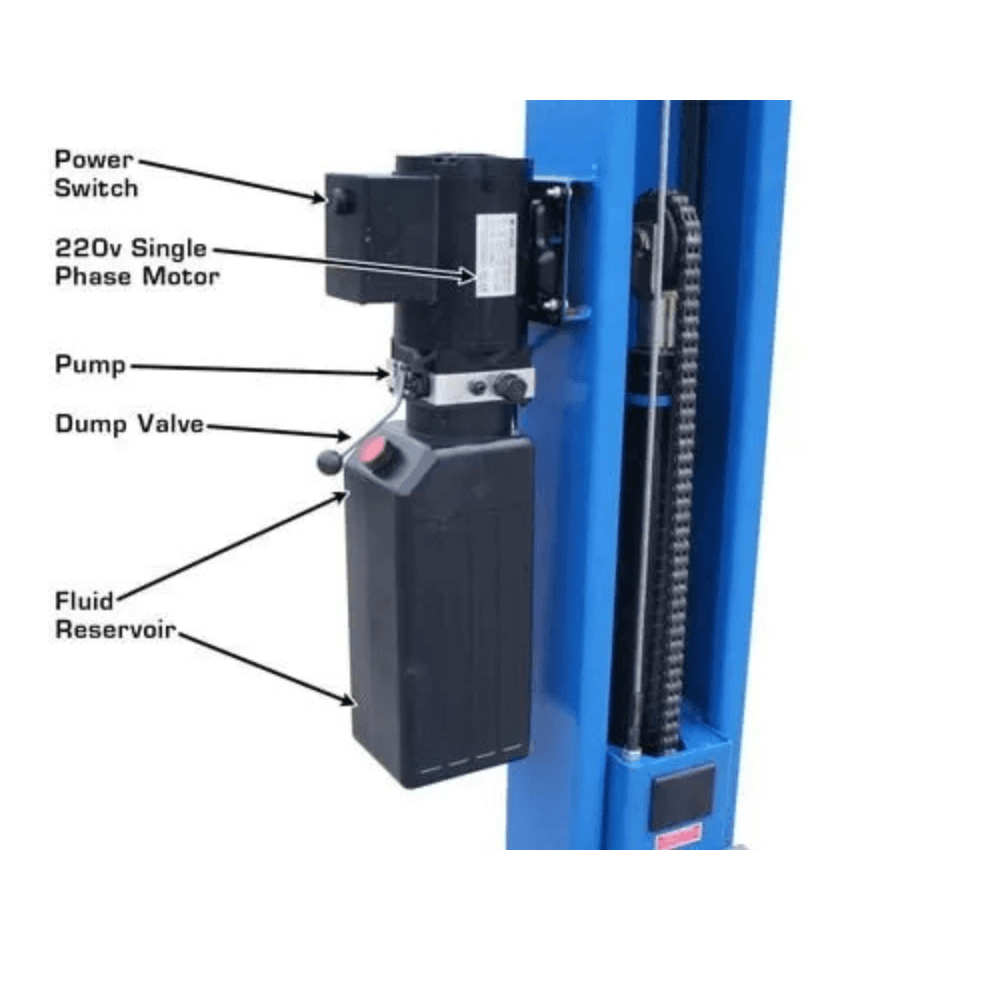

- Dual Hydraulic Chain-Drive Cylinders – Ensures smooth and reliable lifting performance.
- 12-Piece Truck Adapter Set – Expands compatibility for a wider range of vehicles.
- Mounting Hardware Included – For installation.
Compatibility
Compatible with passenger cars, SUVs, and light-duty trucks up to 3,628.7 kg. Suitable for symmetric and asymmetric lifting positions.
Warranty
Warranty: 5-Year Structural, 2-Year Hydraulic (Parts Only).
What's included
- Atlas BP8000 Baseplate Two-Post Lift
- 12-Piece Truck Adapter Set (4 each: 5.1 cm, 7.6 cm, 15.2 cm)
- Installation Mounting Hardware
