Atlas BP12000X Heavy Duty Baseplate 2-Post Lift 5443kg
The Atlas BP12000X is a heavy-duty, commercial-grade two-post baseplate lift engineered to handle up to 5,443 kg (12,000 lbs) in garages and shops with limited ceiling clearance. Featuring an open-top profile with an overall height of 311.2 cm, oversized columns, and dual hydraulic chain-over cylinders, this lift delivers dependable power and maximum structural stability for servicing large trucks, vans, and commercial fleet vehicles.
Designed for professional automotive environments, the lift offers two installation width configurations alongside three-stage symmetric arms, automatic arm restraints, and a single-point safety lock release. A durable powder-coated finish resists corrosion and daily shop wear, while integrated carriage rubber guards protect vehicle exteriors during operation.
Key Features
| Brand | Atlas |
| Model | BP12000X |
| Product Type | Two-Post Baseplate Lift |
| Lifting Capacity | 5443.1 kg |
| Overall Height | 311.2 cm |

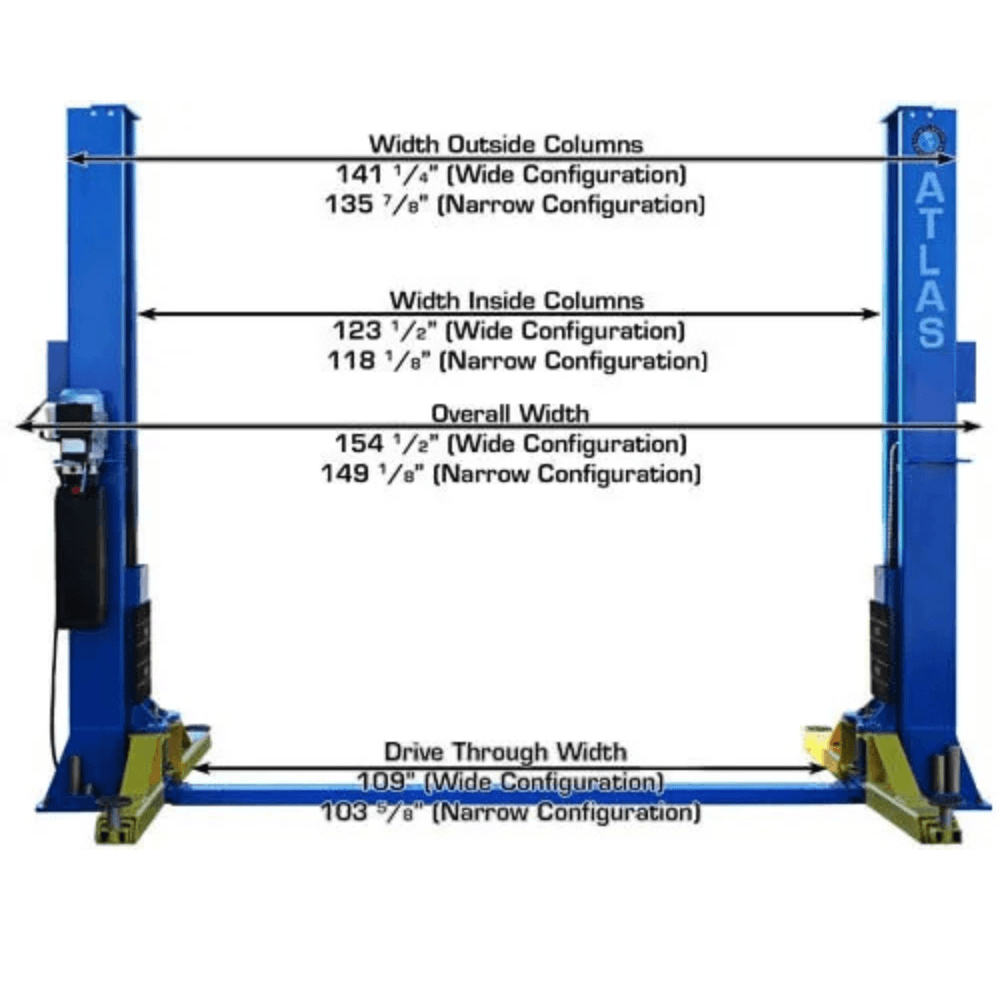

| Overall Floor Width | 379.4 cm or 392.4 cm |
| Outside Column Width | 345.1 cm or 358.8 cm |
| Inside Column Width | 300 cm or 313.7 cm |

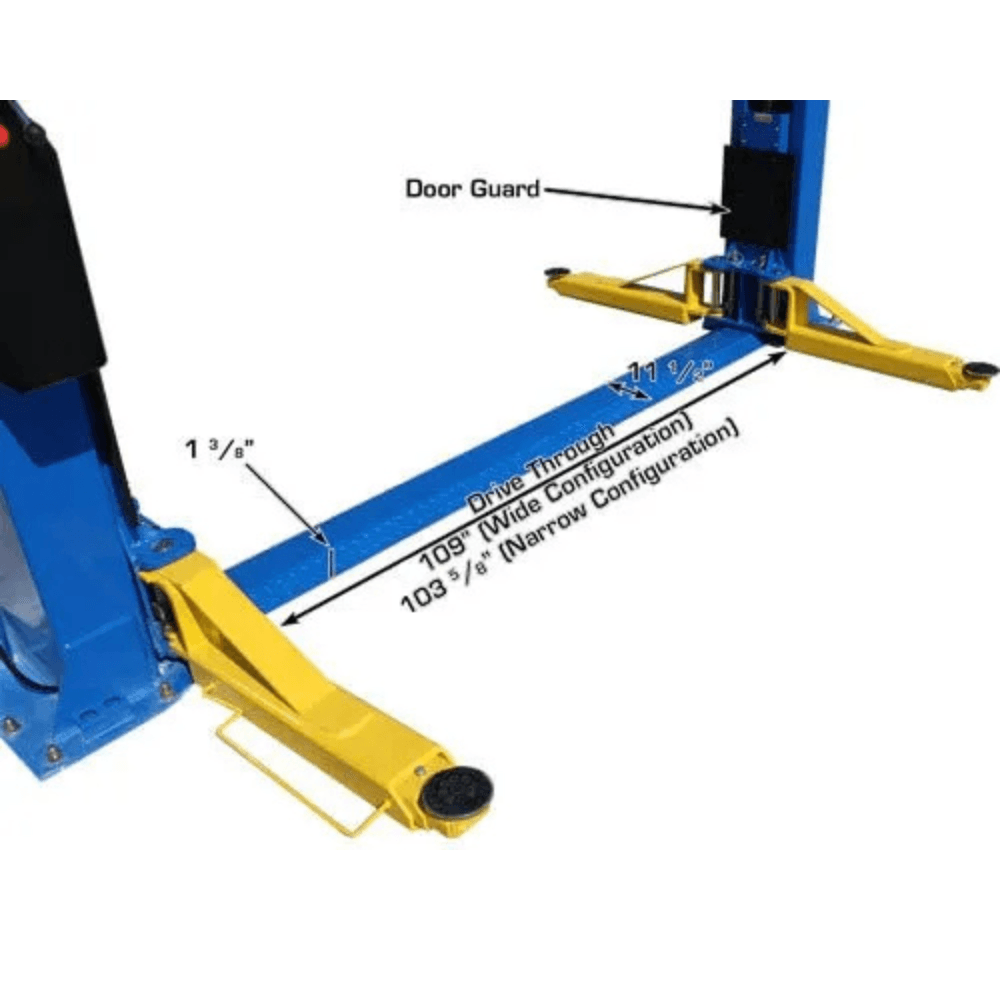

| Drive-Thru Width | 263.2 cm or 276.9 cm |
| Maximum Lift Height (No Adapters) | 196.9 cm |
| Maximum Lift Height (With Adapters) | 224.8 cm |
| Minimum Arm Height | 10.2 cm |
| Column Dimensions | 22.2 cm x 35.6 cm |
| Column Steel Thickness | 6mm |
| Baseplate Dimensions | 47 cm x 54.6 cm |
| Motor / Electrical Requirement | 220V, Single Phase (30 Amp Breaker Recommended) |
| Hydraulic Oil Requirement | 11.4 - 18.9 L AW32/AW46 |
| Shipping Weight | 966.2 kg |
| Adapter Heights | 4 at 5.1 cm, 4 at 7.6 cm, 4 at 15.2 cm |
| Adapter Peg Size | 3.8 cm |
| Concrete Requirement | Minimum 15.2 cm thick, 3000 psi rating |
Highlights
- 12,000 lb. Lifting Capacity – Supports heavy-duty trucks, vans, and commercial vehicles.
- Heavy-Duty, Commercial-Grade Construction – Built for long-term durability.
- Baseplate, Open-Top Style Lift – Perfect for garages with low ceilings.
- Overall Height: 122 1/2” (10′ 2 1/2”) – Requires minimal overhead clearance.
- Adjustable Width – Can be installed at two different width settings to accommodate wider vehicles.
- 3-Stage Symmetric Arms – Provides secure and balanced lifting for various vehicle sizes.
- Automatic Arm Restraints – Keeps the lifting arms locked in place for added safety.

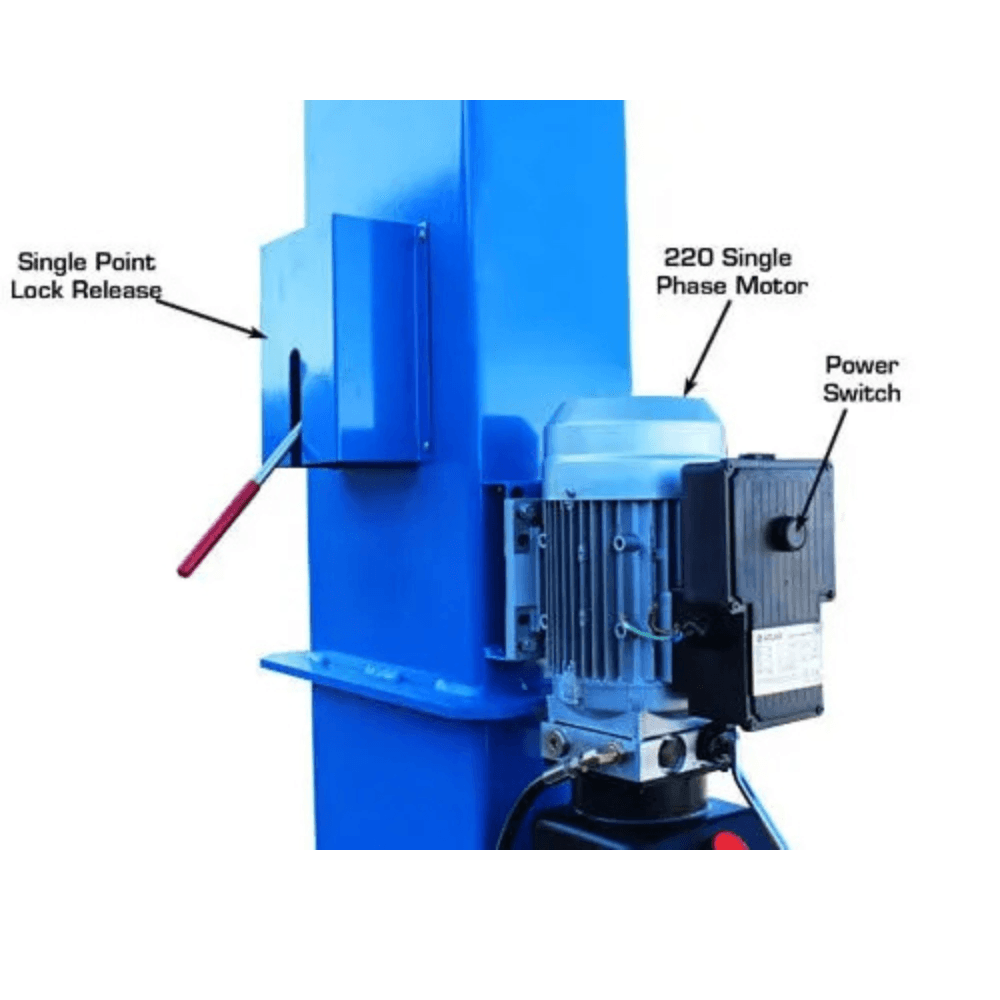

- Single-Point Lock Release – Simplifies lift operation by allowing the locks to be released from one location.
- Rubber Guards on Carriages – Protects vehicles from accidental contact with lift components.

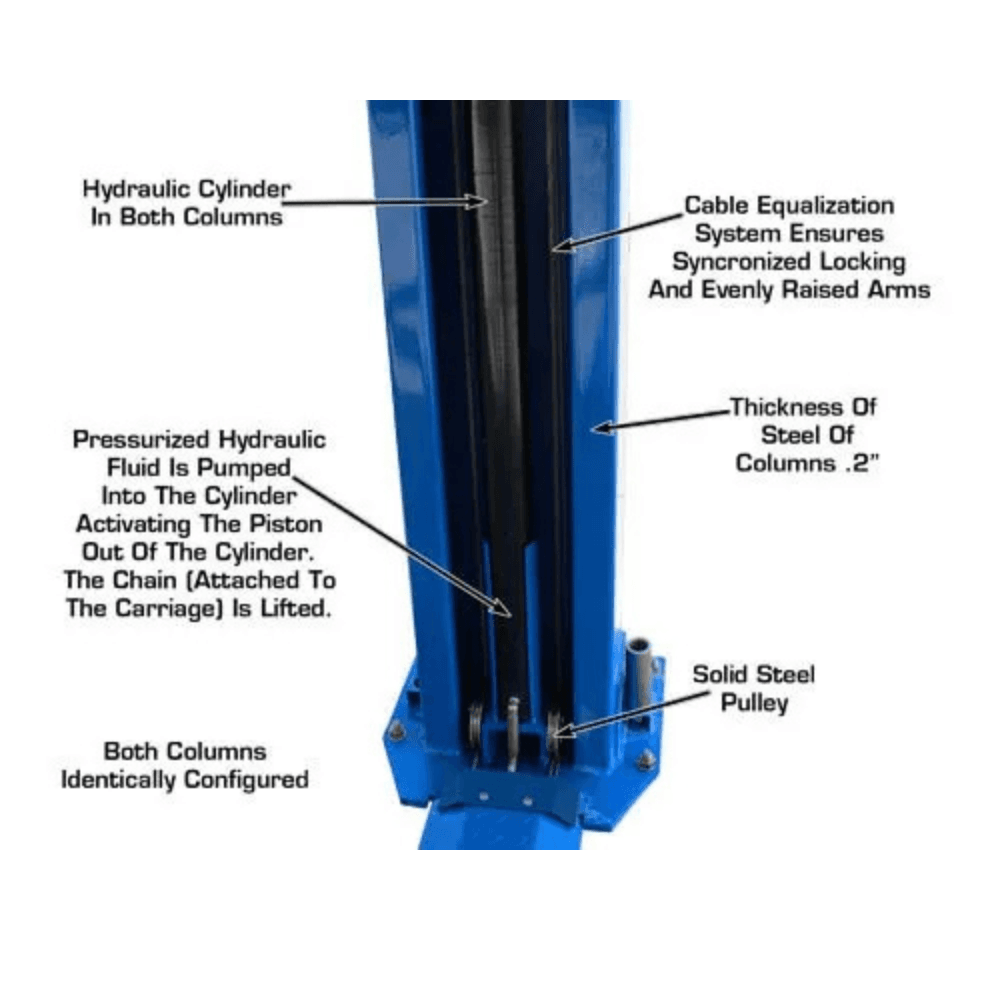

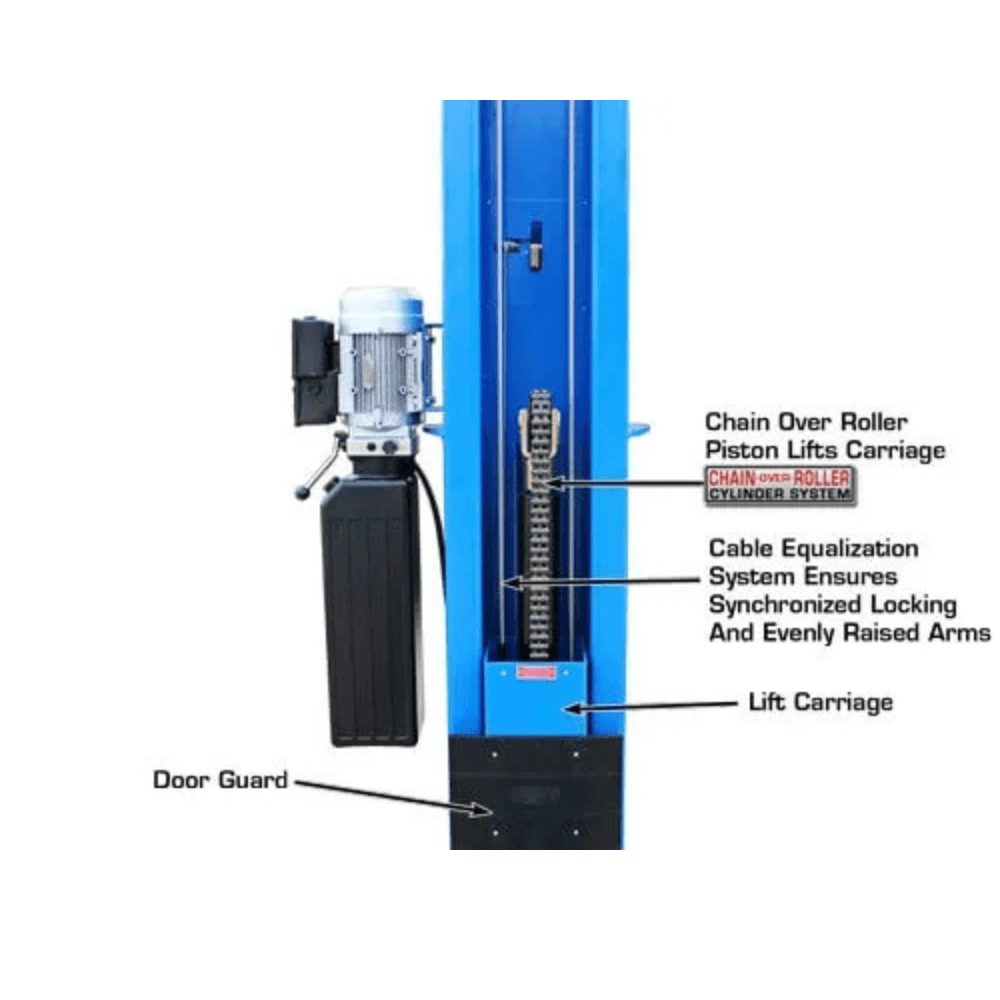

- Dual Hydraulic Chain-Over Cylinders – Ensures smooth, powerful lifting with minimal maintenance.
- Powder Coat Finish – Increases durability and resistance to wear and corrosion.
- 12-Piece Truck Adapter Set – Expands lift compatibility with various vehicle types.
- Mounting Hardware Included – Ensures a secure installation.
- Warranty – 5 years structural, 2 years hydraulic (parts only).
Compatibility
Compatible with standard passenger cars, large SUVs, commercial vans, heavy-duty pickup trucks, and trailers within the 5,443 kg weight limit.
What's included
- Atlas BP12000X Two-Post Baseplate Lift
- 12-Piece Truck Adapter Set (4 x 5.1 cm, 4 x 7.6 cm, 4 x 15.2 cm)
- Installation Mounting Hardware
