Atlas APEX8-EXT 4-Post Lift 5.25m x 2.92m
The Atlas APEX8-EXT is an ALI Certified four-post lift engineered for homeowners, classic car collectors, and restoration enthusiasts looking to double garage parking capacity. Constructed from heavy-duty 6-gauge steel, this extended lift boasts an 8,000 lb. (3,628.7 kg) capacity with a maximum lifting height of 214 cm, effortlessly accommodating most passenger vehicles and light trucks.
Built with stability and user convenience in mind, it features a single point lock release, a lock ladder design, and a double lock safety system. For exceptional flexibility around the garage, it includes a mobile caster kit with durable polyurethane wheels along with steel approach ramps, drip trays, wheel stops, and rubber wheel chocks.
Key Features
| Brand | Atlas |
| Model | APEX8-EXT |
| Lifting Capacity | 3,628.7 kg |
| Maximum Lifting Height | 214 cm |
| Overall Length (With Approach Ramps) | 525.1 cm |
| Overall Length (Without Approach Ramps) | 444.5 cm |
| Overall Width (With Motor) | 292.1 cm |
| Overall Width (Without Motor) | 265.4 cm |
| Clearance Under Runways | 200.7 cm |
| Clearance Between Columns | 240 cm |
| Length Between Columns | 400.1 cm |
| Drive-Thru Width | 204.5 cm |
| Runway Length | 421 cm |
| Runway Thickness | 11.4 cm |
| Approach Ramp Length | 94 cm |
| Steel Gauge Thickness | 6 Gauge (4.75 mm) |

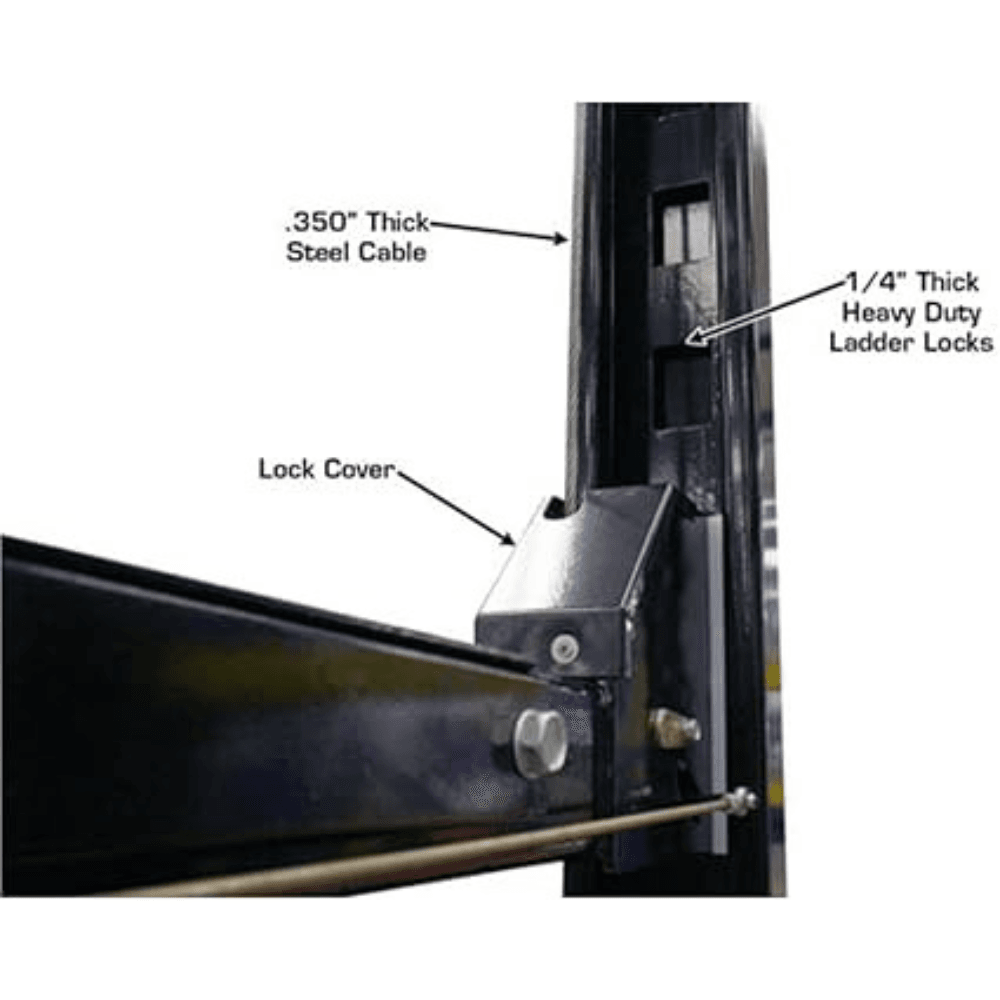

| Cable Diameter | 8.9 mm |

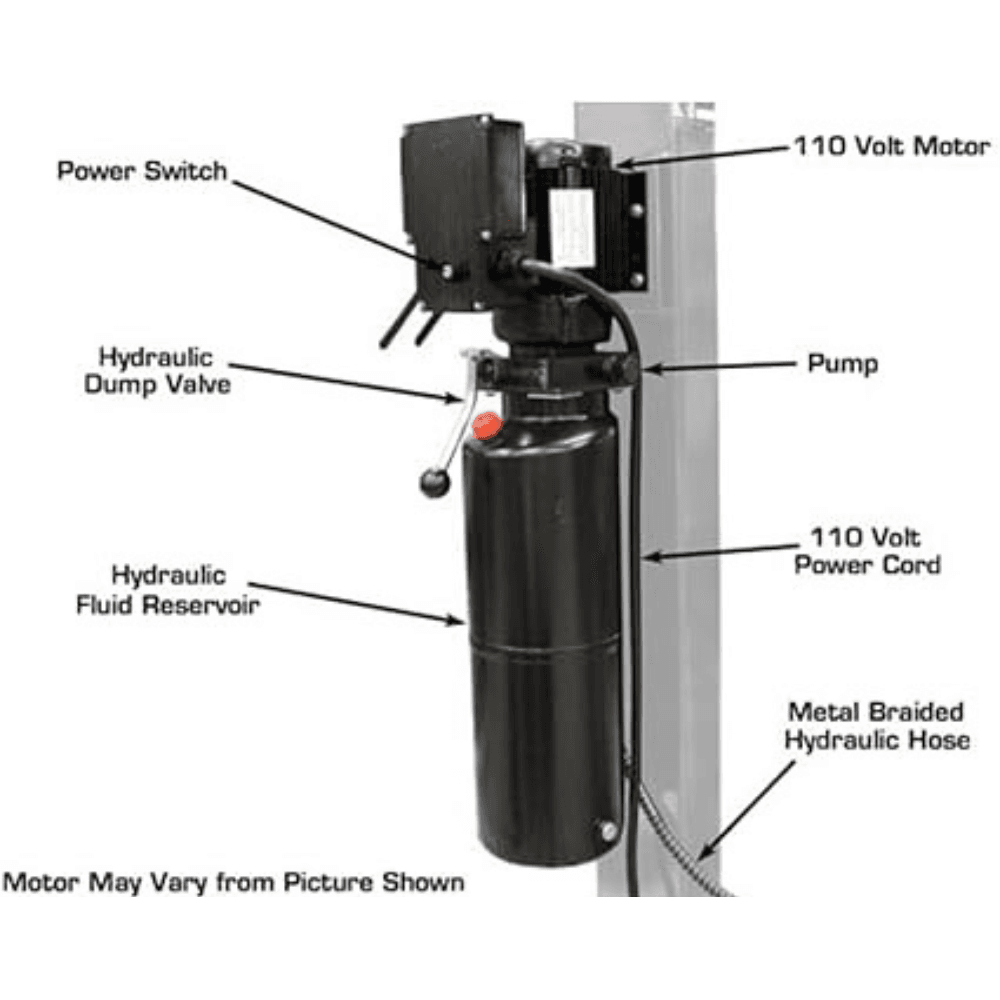

| Motor | 110V – 30 Amp Breaker Required |
| Hydraulic Oil Requirement | 11.4 - 18.9 L AW32/AW46 (Not Included) |
| Product Weight | 939.8 kg |
Highlights
- ALI Certified – Ensures safety and reliability.
- 8,000 lb. Lifting Capacity – Ideal for passenger cars and light trucks.
- Atlas Powder Coat Finish – Provides durability and protection against wear.

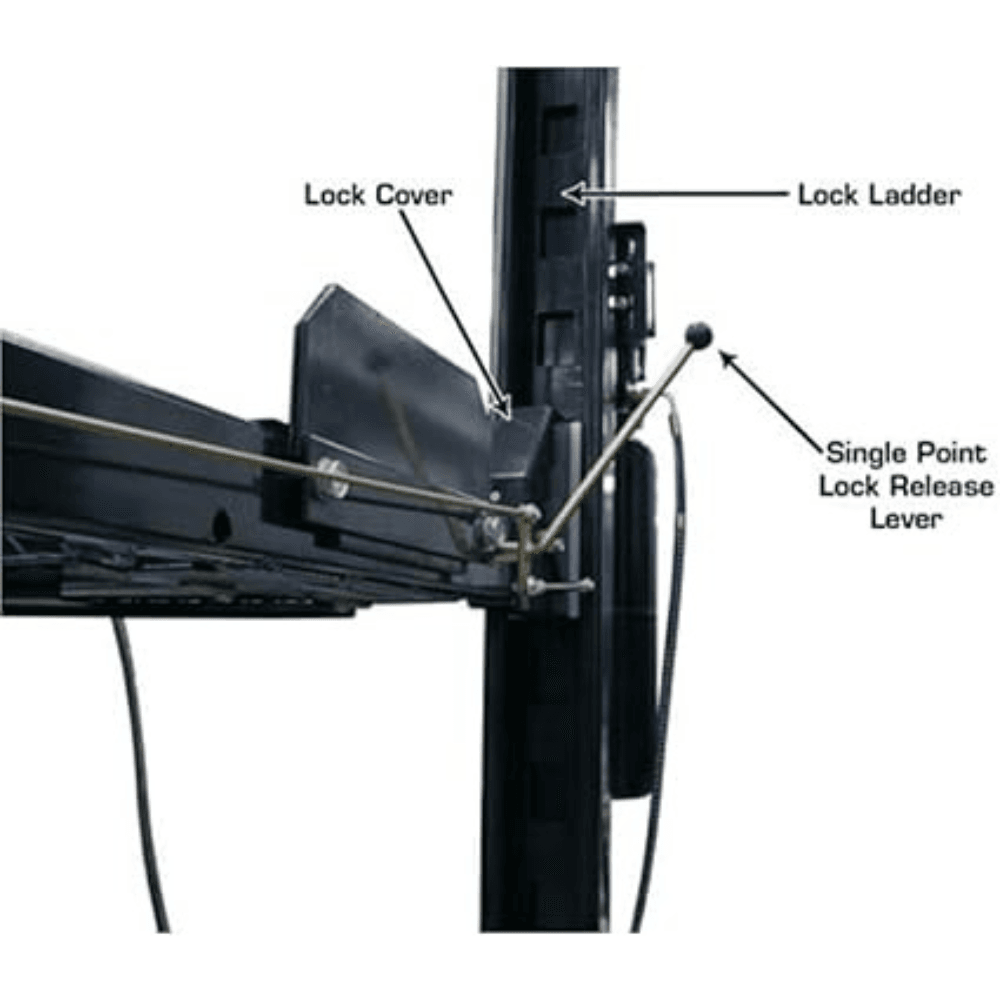

- Single Point Lock Release – Simplifies lift operation.
- Lock Ladder Design – Enhances stability and safety.
- Double Lock Safety System – Extra security for peace of mind.
- Anchor Bolts (Optional) – For permanent installation if needed.
- Steel Approach Ramps (Included) – Provides easy access for vehicles.
- Caster Kit with Polyurethane Wheels (Included) – Makes the lift portable.
- Drip Trays (Included) – Helps keep floors clean by catching fluids.
- Four Wheel Stops (Included) – Prevents vehicles from rolling off the lift.
- Two Rubber Wheel Chocks (Included) – Additional safety for parked vehicles.
- Perfect for Vehicle Storage or Maintenance – A versatile lift for car enthusiasts.
- Shipping Weight: 2,072 lbs. – Heavy-duty steel construction for longevity.
What's included
- Atlas APEX8-EXT 4-Post Lift
- Caster Kit with Polyurethane Wheels
- Steel Approach Ramps
- Drip Trays
- Four Wheel Stops
- Two Rubber Wheel Chocks
