Atlas 9KBPX Baseplate 2-Post Car Lift 4082.3kg
The Atlas 9KBPX is a robust baseplate-style two-post car lift engineered specifically for garages with low ceiling clearance. Powered by dual hydraulic chain-drive cylinders and a chain-over-roller system, it delivers smooth and reliable lifting performance for cars, SUVs, and light-duty trucks.
Featuring symmetric arms, automatic arm restraints, and a Secondary Lock System, this open-top lift ensures maximum stability and safety during maintenance. The compact 283.2 cm column height makes it an ideal, space-efficient solution for residential workshops and commercial service bays.
Key Features
| Brand | Atlas |
| Model | 9KBPX |
| Lifting Capacity | 4082.3 kg |
| Overall Height | 283.2 cm |

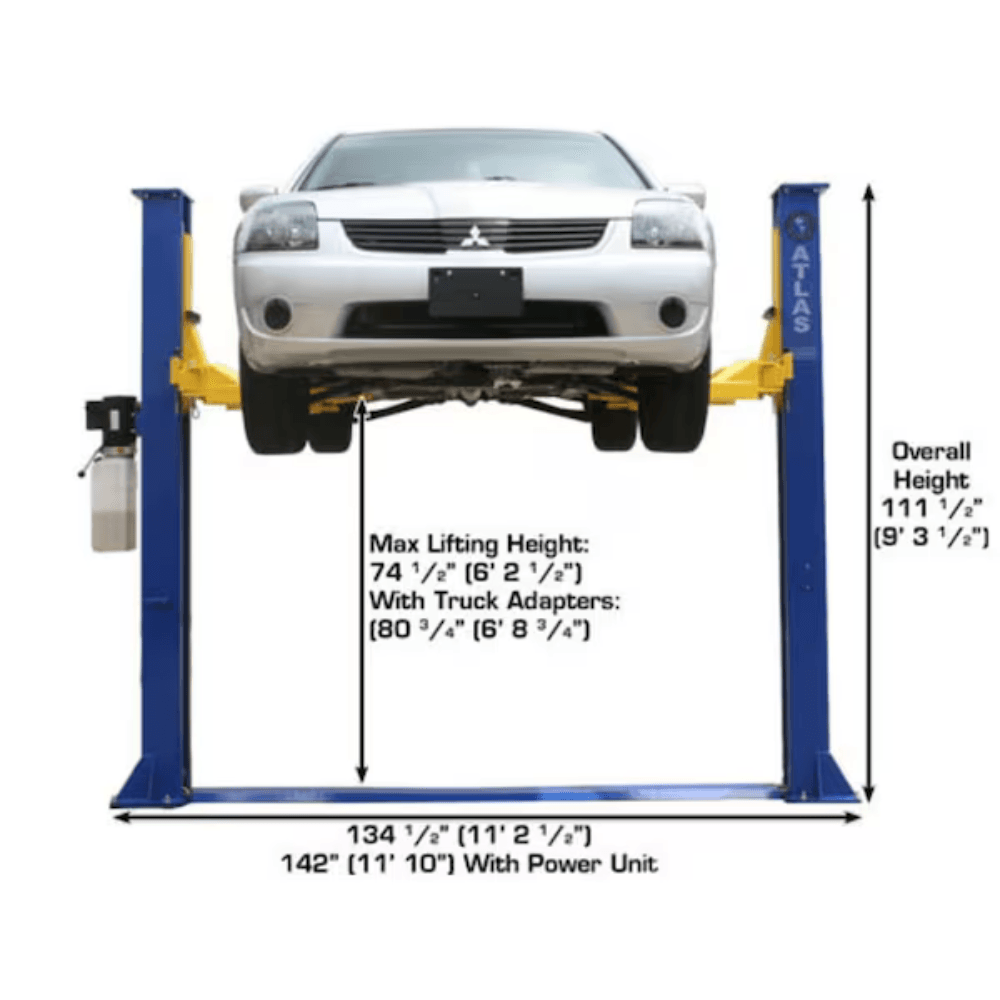

| Overall Floor Width | 341.6 cm |
| Outside Column to Outside Column Width | 317.2 cm |

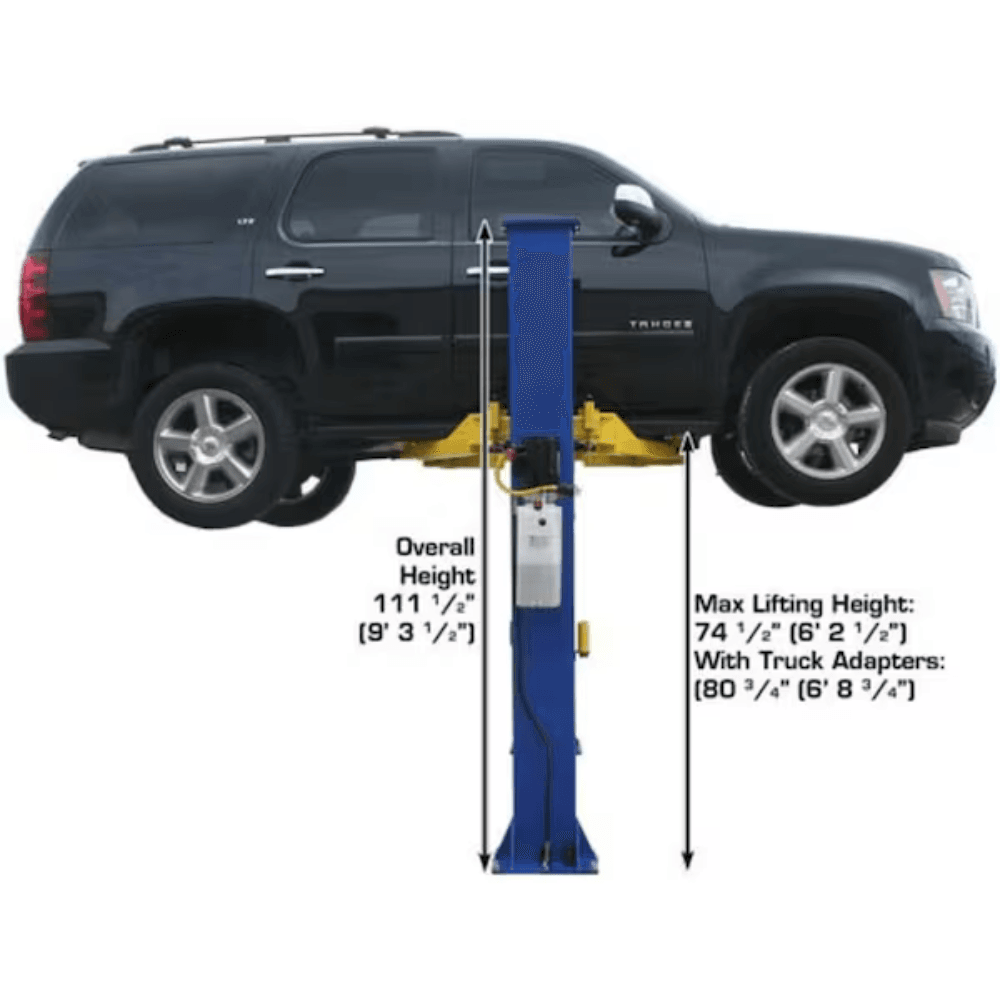

| Maximum Lift Height (Without Adapters) | 189.2 cm |
| Maximum Lift Height (With Adapters) | 205.7 cm |
| Minimum Arm Height | 10.2 cm |
| Inside Column Width | 279.4 cm |
| Drive-Thru Width | 256.5 cm |
| Column Size | 18.4 cm x 27.9 cm |
| Column Steel Thickness | 5 mm |

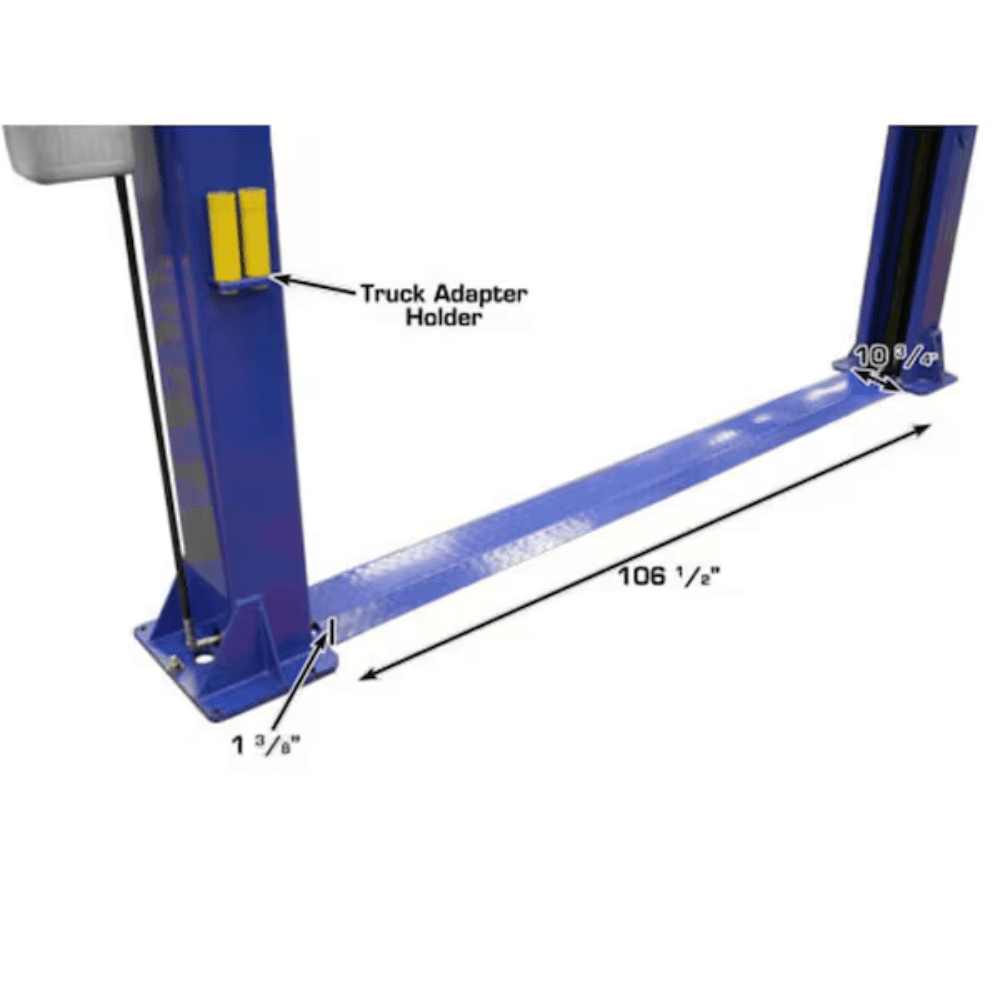

| Baseplate Size | 36.2 cm x 46.4 cm |
| Motor/Electrical Requirements | 220V, Single Phase, 30 Amp Breaker Recommended |
| Oil Requirement | 11.4 - 18.9 L AW32/AW46 (Not Included) |
| Shipping Weight | 635 kg |
| Adapter Heights | 4 at 3.8 cm, 4 at 12.7 cm |
| Arm Hole/Adapter Peg Size | 3.8 cm |
Highlights
- 9,000 lb. Lifting Capacity
- Baseplate, Open-Top Style Lift
- Designed for Low Ceiling Clearance
- Symmetric Arms for Balanced Lifting

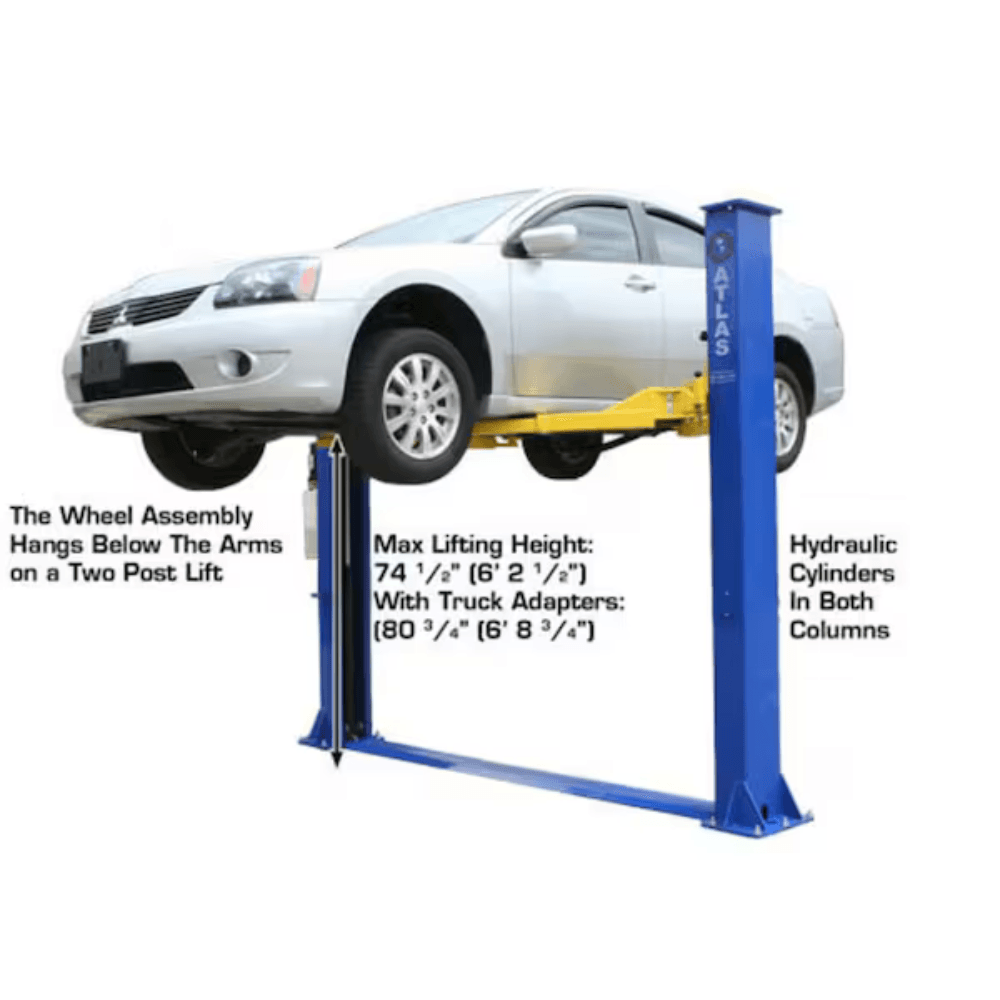

- Dual Hydraulic Chain-Drive Cylinders
- Secondary Lock System (SLS) for Safety
- Automatic Arm Restraints
- Dual Point Lock Release
- 8-Piece Truck Adapter Set included
- Mounting Hardware included
Compatibility
Compatible with passenger cars, SUVs, and light-duty trucks up to 4,082.3 kg. Not recommended for large heavy-duty trucks or diesel dually vehicles.
What's included
- Atlas 9KBPX Baseplate 2-Post Lift Structure
- 8-Piece Truck Adapter Set (4 at 3.8 cm, 4 at 12.7 cm)
- Mounting Hardware
